Description

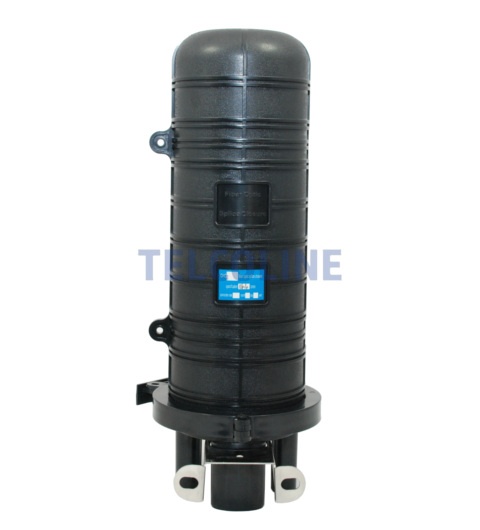

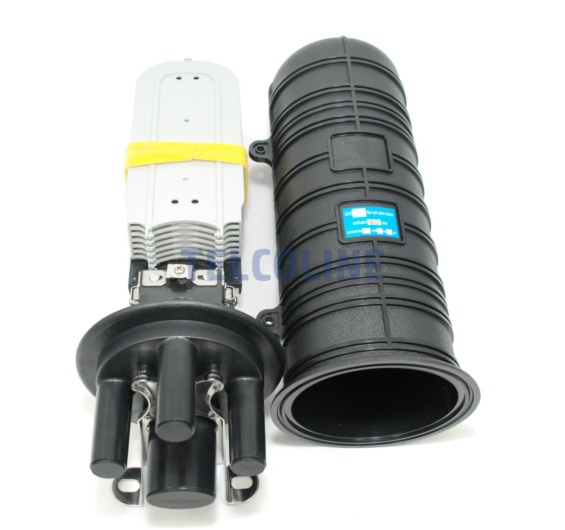

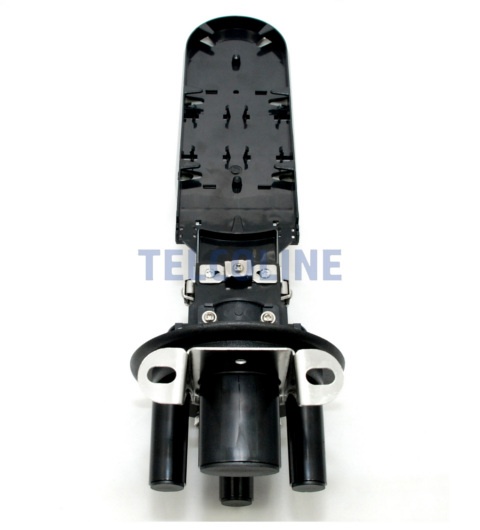

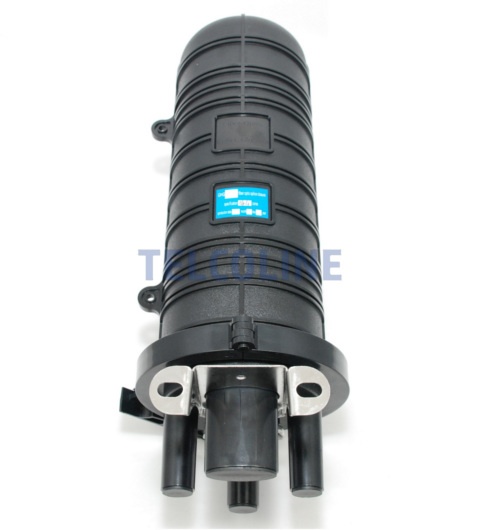

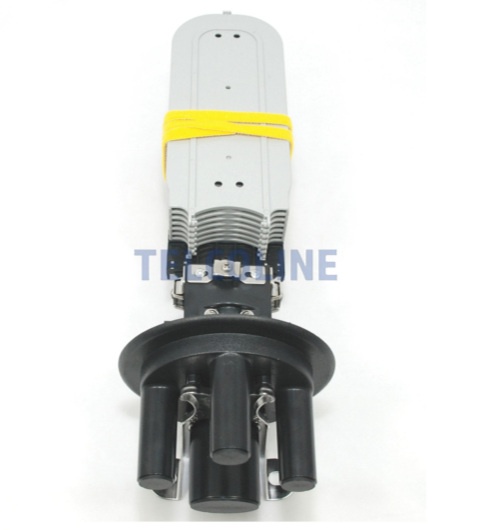

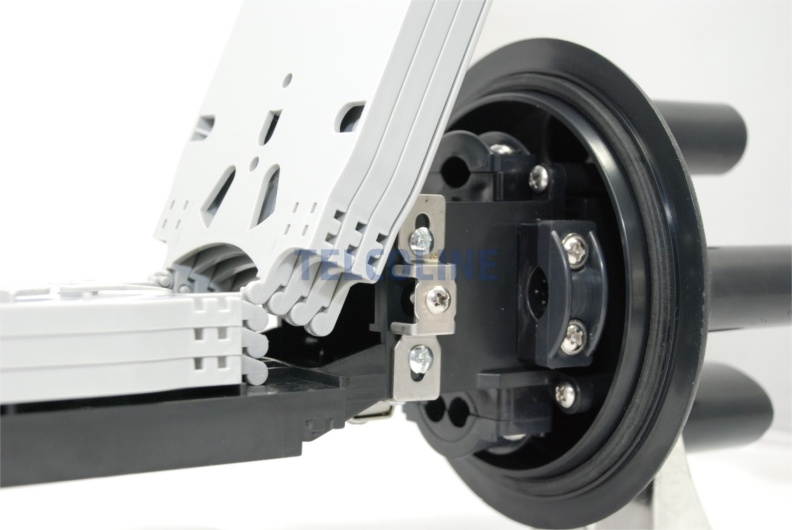

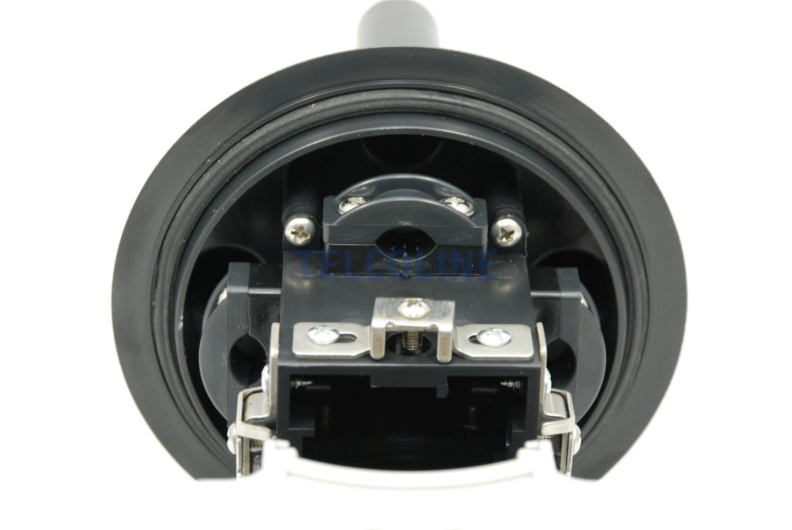

TELCOLINE IM.144.3.1 vertical fiber optic coupler is a device designed to protect optical fiber splices against atmospheric conditions and against mechanical hazards. The design and additional accessories allow the device to be installed in overhead, earth and sewage installations. The coupling has been equipped with 6 fiber trays (cassettes) with the possibility of placing up to 24 welds on each. It was made of polypropylene (PP), which guarantees resistance to UV radiation, low and high temperatures as well as substances occurring in the teletechnical sewage system.  The device is hermetically sealed, the degree of protection is  IP68 (6 – Dustproof protection, 8 – protection against the effects of continuous immersion in water) . The coupling is equipped with 3 round ports with a diameter of 20 mm and one oval port (46×23 mm). The set includes a clamp for mounting on a telecommunications pole, and screwed brackets for wall mounting.

Data:

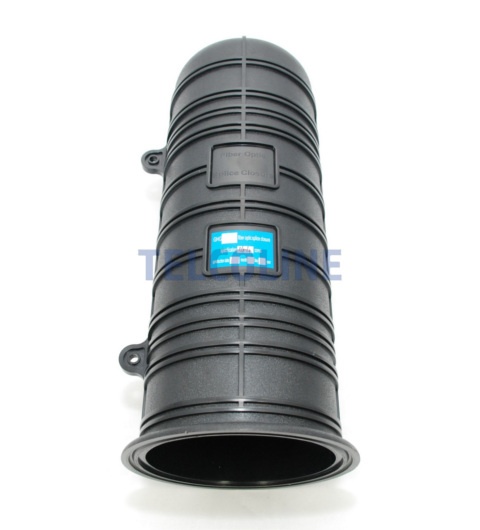

– External diameter of the hood: 120 mm
– Overall height: 420 mm
– Housing material: Polypropylene (PP)
– Number of trays / optical fiber cassettes: 6
– Maximum number of welds: 144 (6×24)

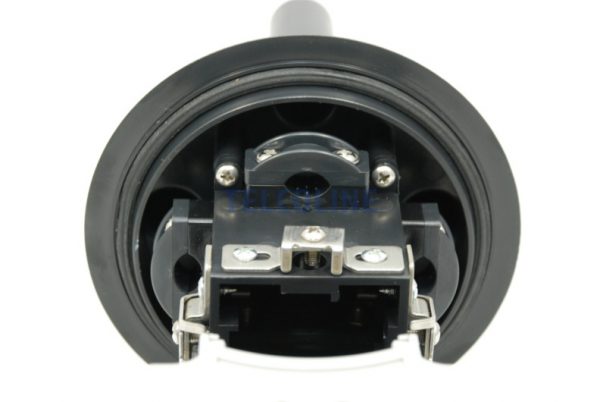

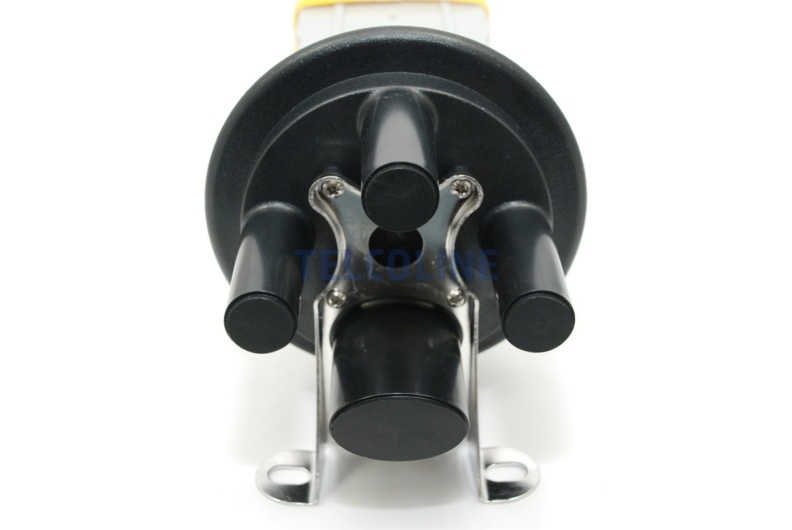

– Number of ports: 4 (3 round / 1 oval)
– Int. Diameter round ports: 20 mm
– Inside dimensions, oval port: 46×23 mm
– Working temperature: – 40 ° C ~ + 65 ° C
– Tightness class: IP68

Application:
– Overhead networks
– Sewer networks
– Ground installations

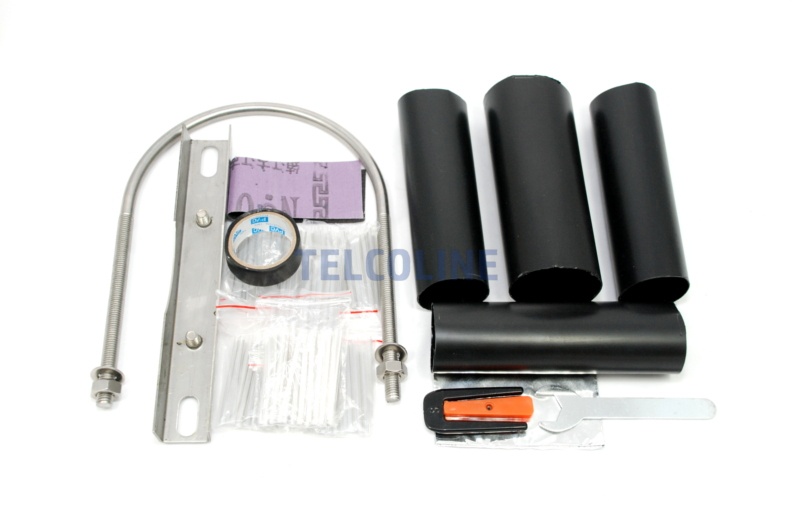

Equipment:

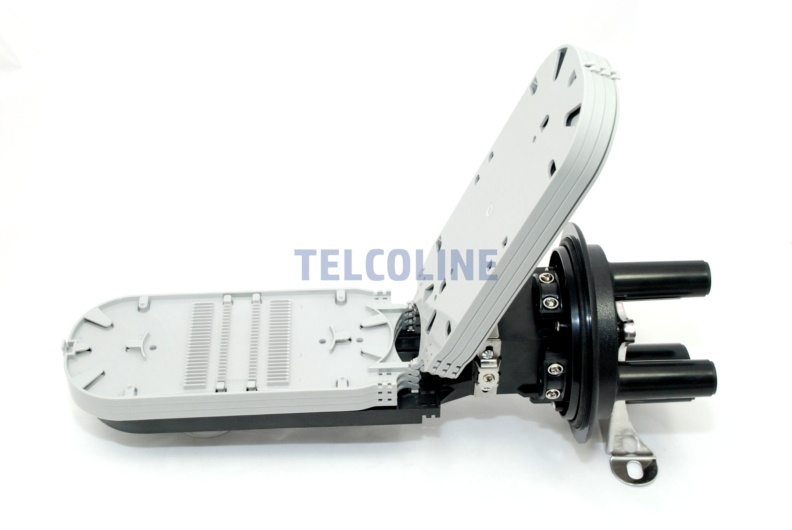

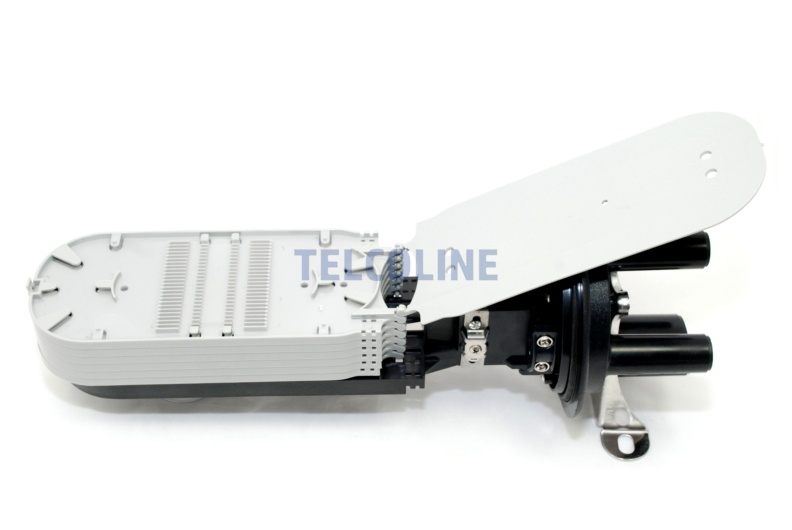

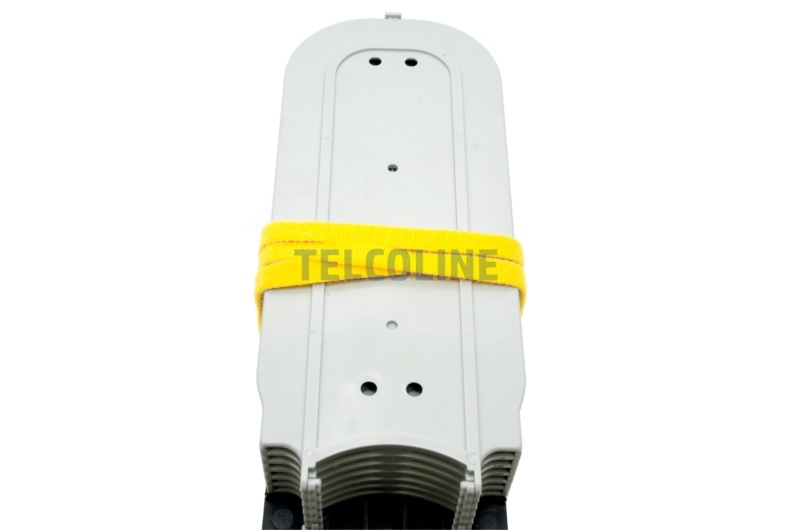

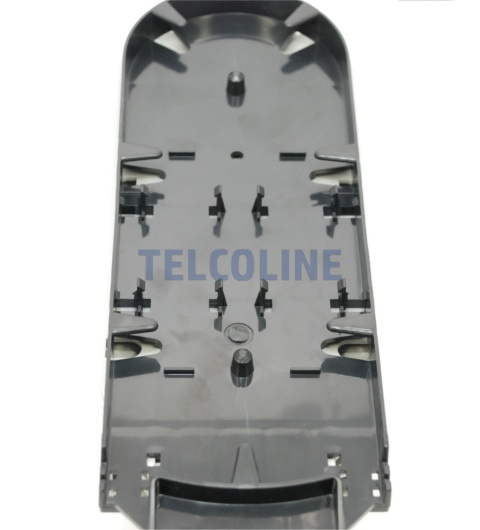

– Trays / Fiber cassettes: 6
– Cable port seals

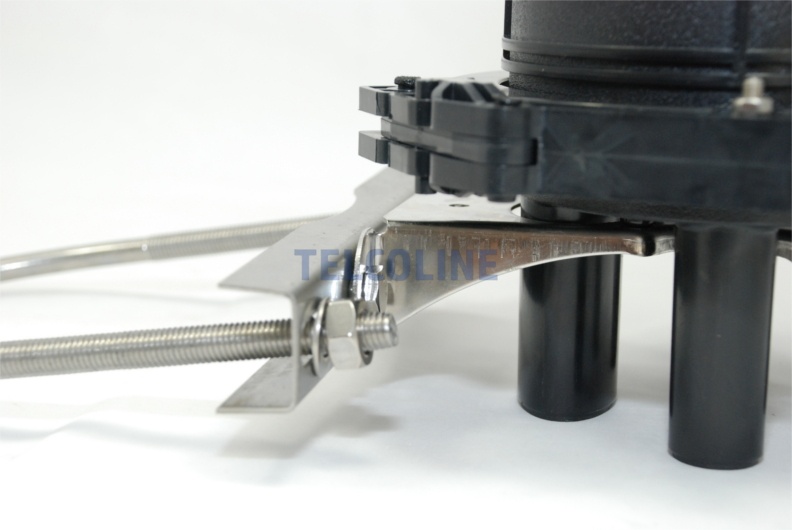

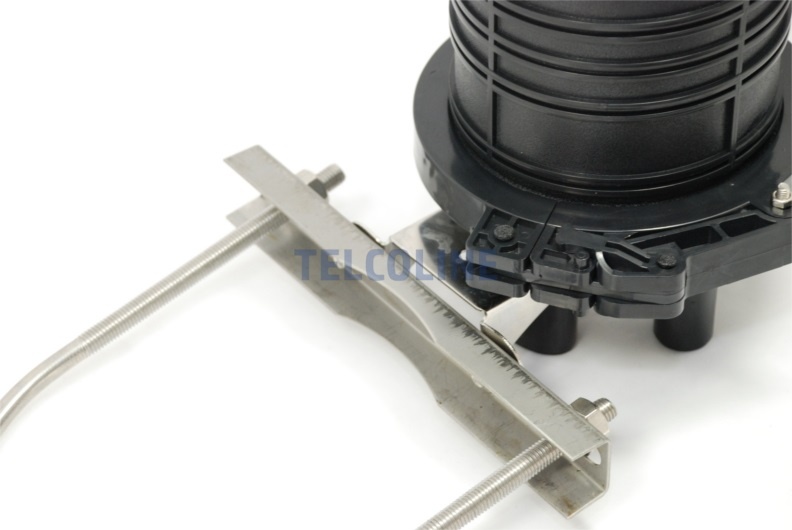

– Bracket + bracket for pole mounting
– Insulation tape
– Splice covers: 144
