Description

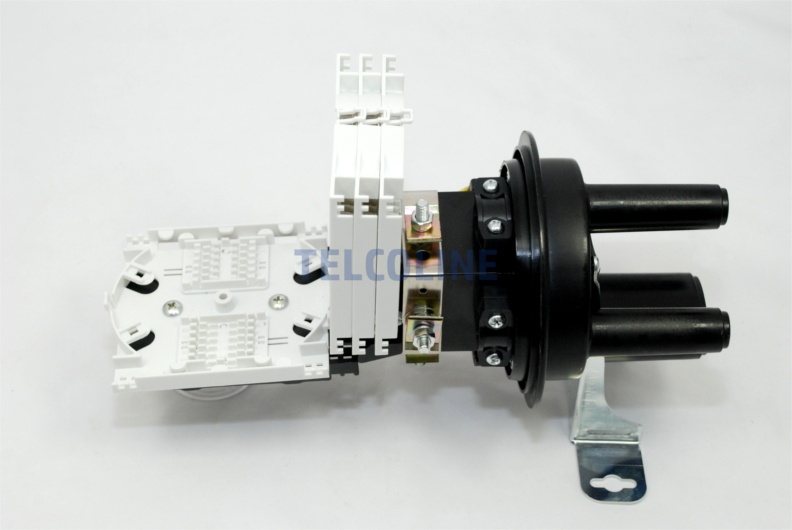

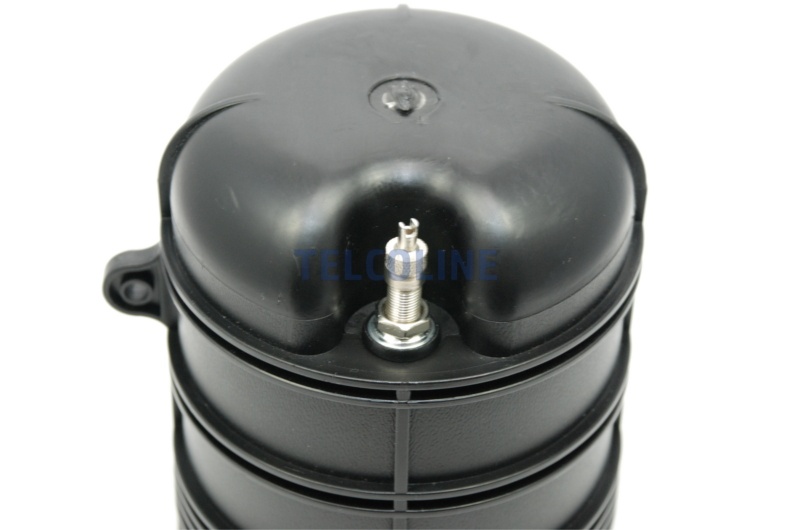

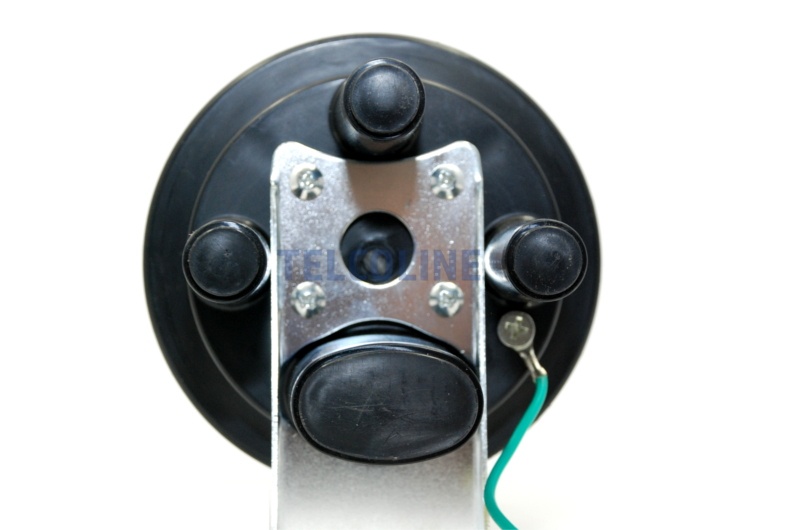

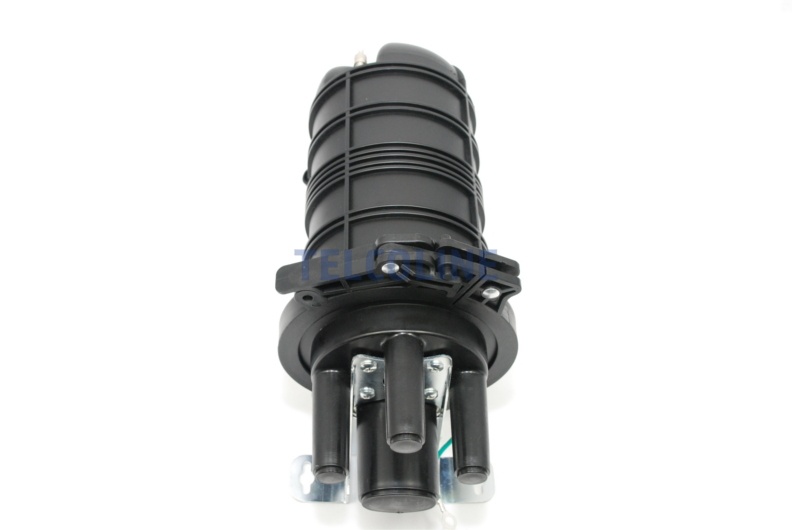

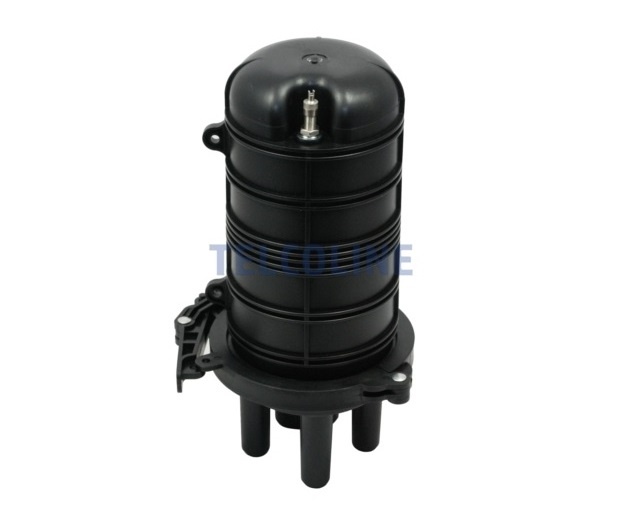

The vertical fiber optic  coupler IM.048.3.1  is a device designed to protect optical fiber splices against atmospheric conditions and against mechanical hazards. The design and additional accessories allow the device to be installed in overhead, earth and sewage installations. The coupling has been equipped with 4 fiber optic trays (cassettes) with the possibility of placing up to 12 welds on each. It was made of polypropylene (PP), which guarantees resistance to UV radiation, low and high temperatures as well as substances occurring in the teletechnical sewage system.  The device is hermetically sealed, the  degree of protection is  IP68 (6 – Dustproof protection, 8 –  protection against the effects of continuous immersion in water ). The muff is equipped with 3 round ports and one oval port. The set includes a screwed bracket for wall mounting.

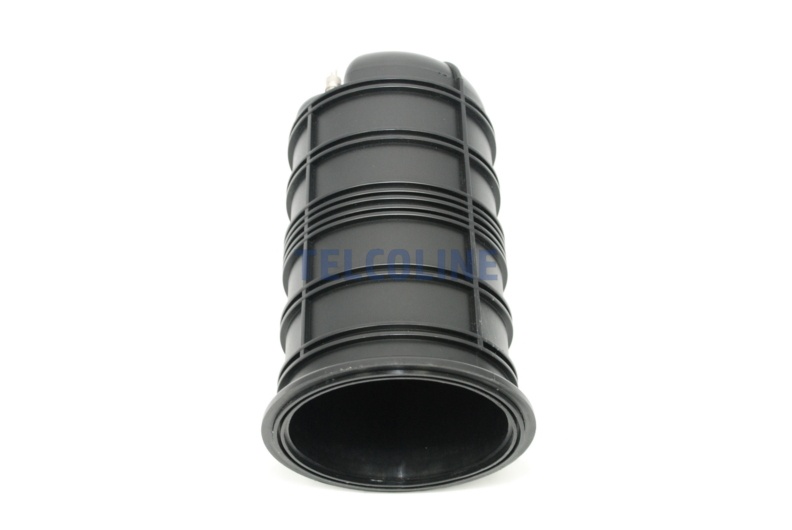

Data:
– Height: 300 mm
– Diameter of the hood: 120 mm
– Case material: Polypropylene (PP)
– Number of trays / optical fiber cassettes: 4
– Maximum number of welds: 48 (4×12)
– Number of ports: 4 (3 round / 1 oval)
– Internal diameter of round ports: 17 mm
– Dimensions of oval port: 27×44 mm
– Working temperature: – 40 ° C ~ + 65 ° C
– Tightness class: IP68

Application:
– Overhead networks
– Sewer networks
– Ground installations

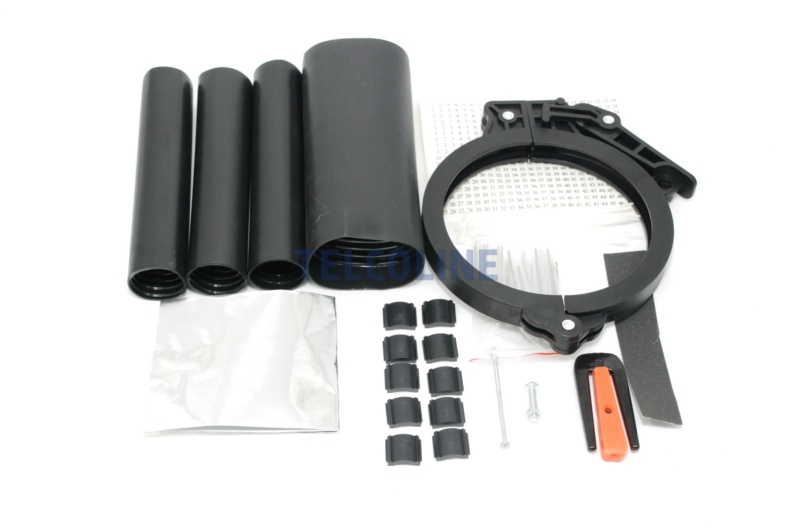

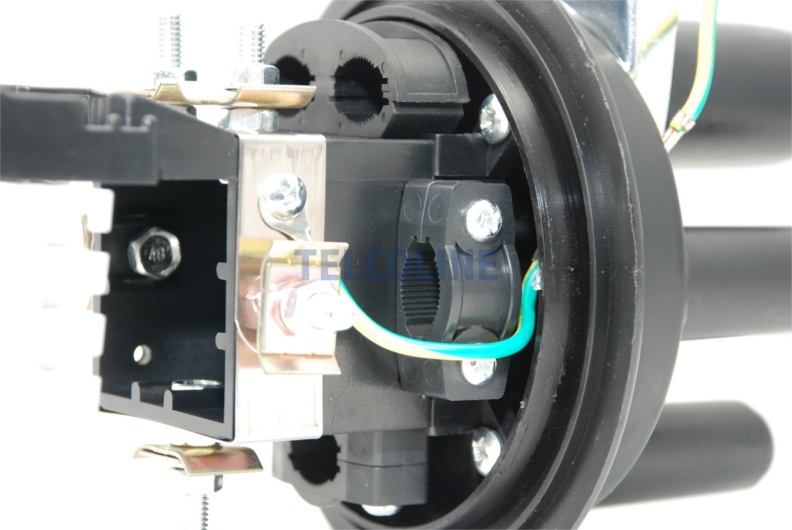

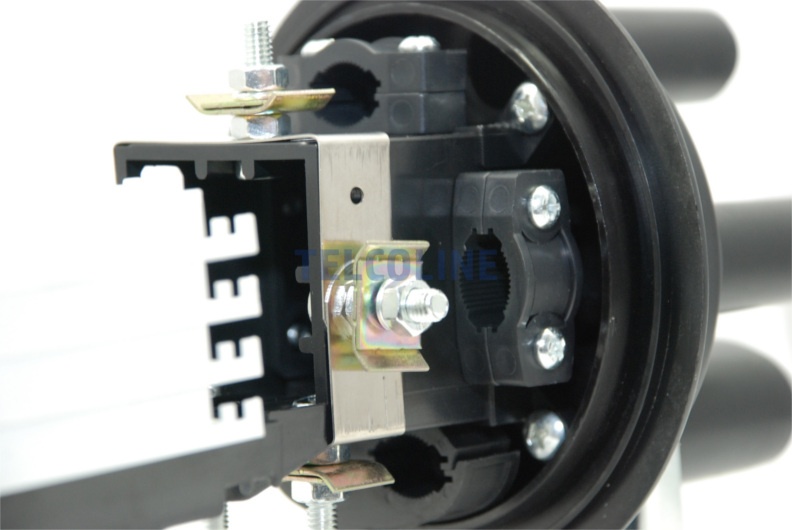

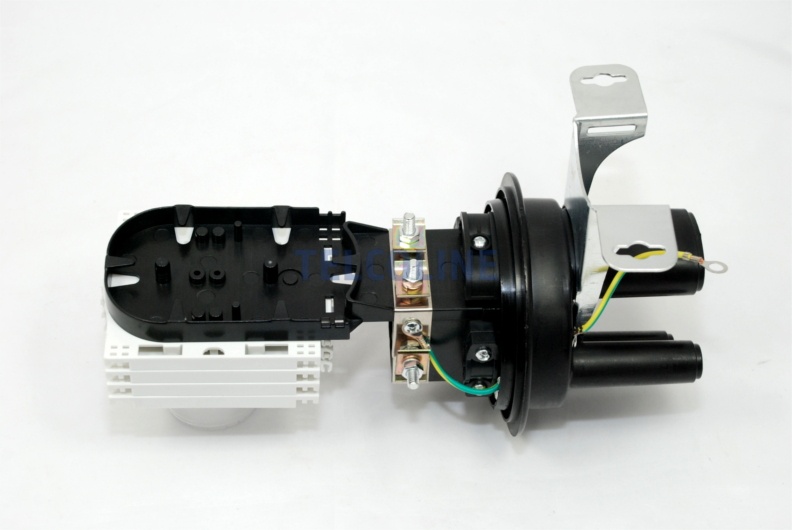

Equipment:

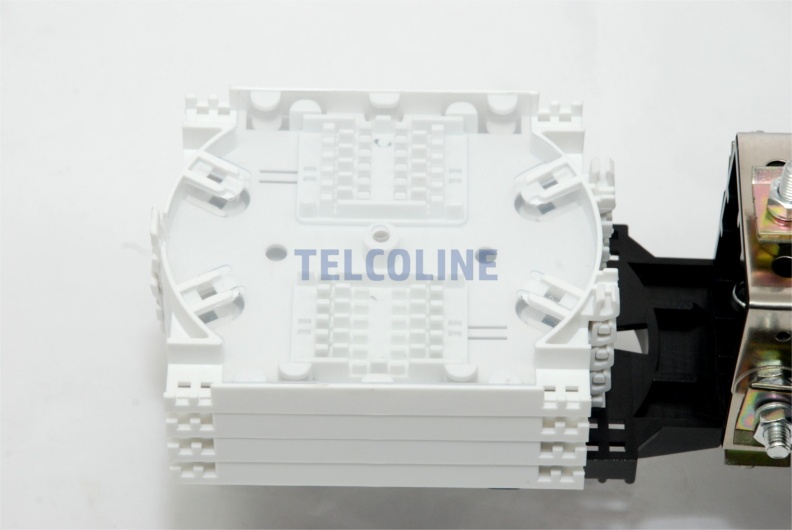

– Trays / Fiber cassettes: 4
– Cable port seals
– Wall mounting bracket
– Insulation tape
– Splice covers: 48
– Tags
