Description

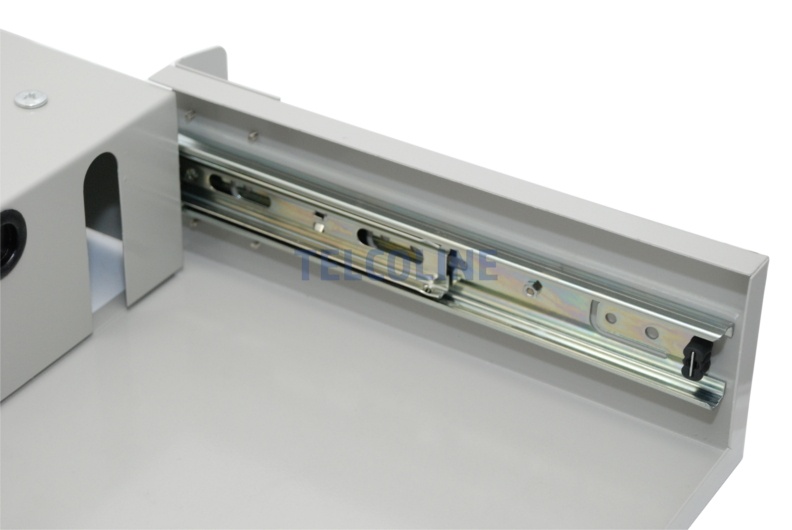

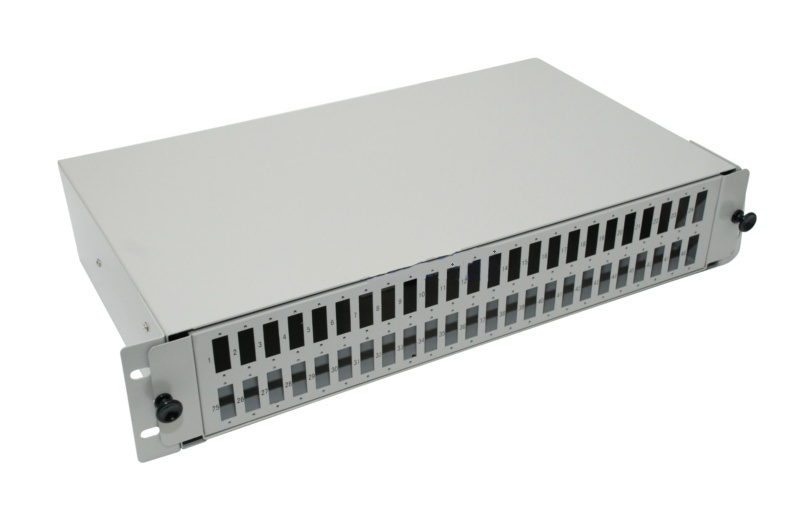

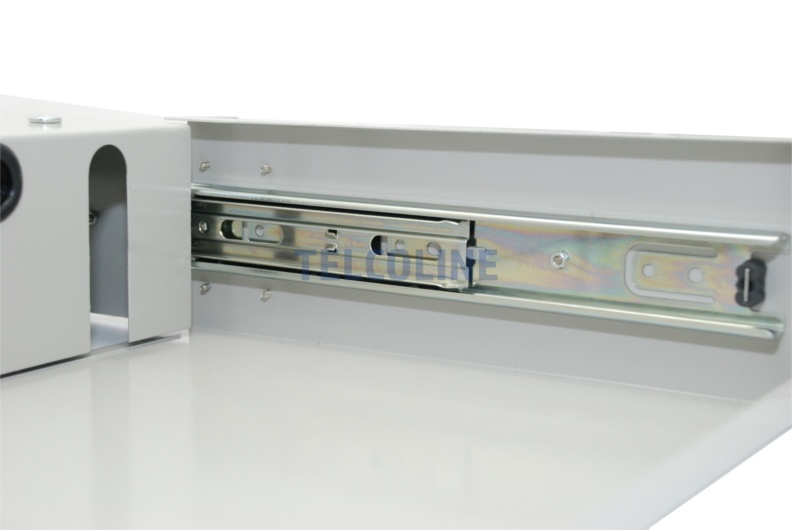

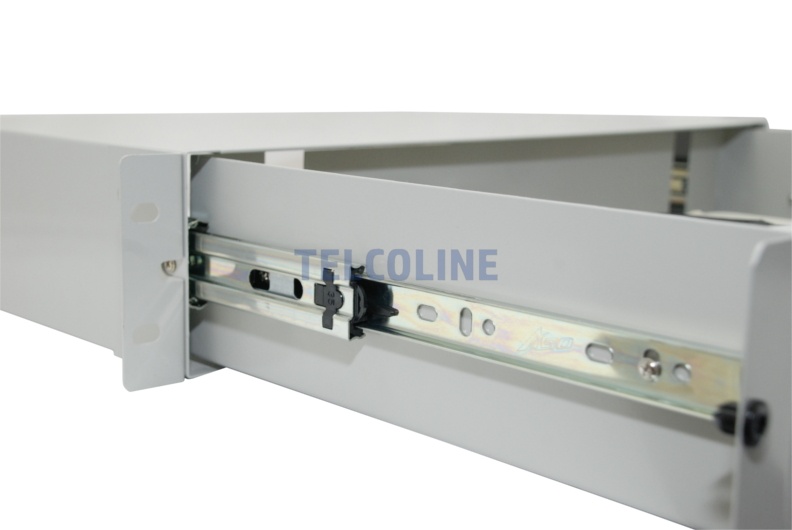

The Telcoline 96F – 19 “/ 2U fiber optic distribution box is designed for installation in 19″ telecom cabinets (standing, hanging), allows the installation of 48 SC Duplex adapters, equipped with a cable organizer and four fiber optic trays, with four openings on the back The switchgear is equipped with a solid rail system allowing the drawer to be pulled out, allowing free access to the interior.The switchboard is universal and will be used in server rooms and telecommunications equipment

Technical data:
– Weight: 3 kg

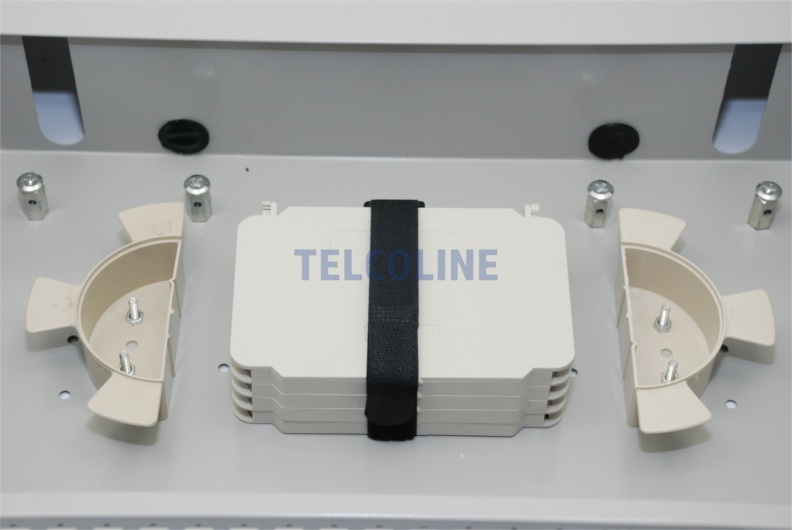

– Number of trays: 4

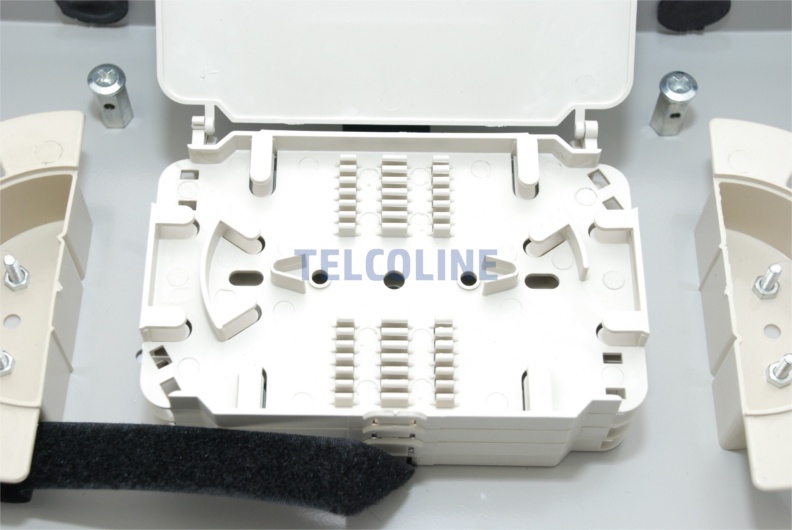

– Trays capacity: 12/24 welds

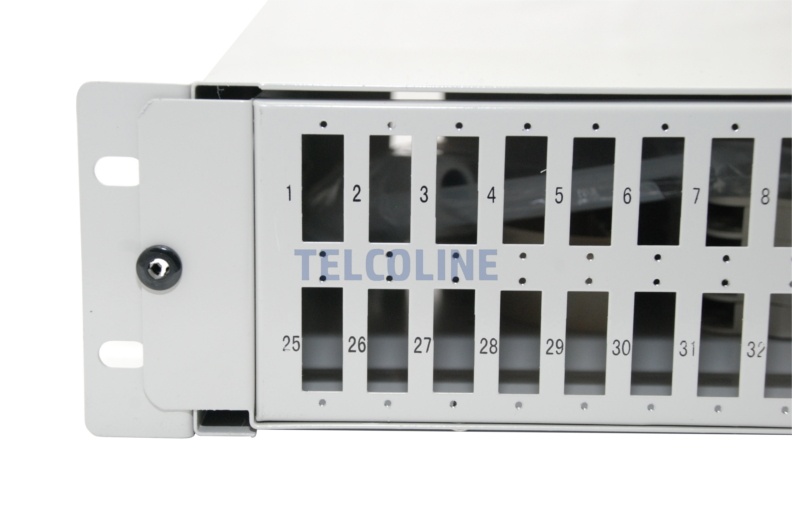

– Maximum number of adapters: 48 (SC Duplex)
– Material: Cold-rolled steel – powder painted in light gray
– Maximum number of trays: 6
– Dimensions: – Mounting height: 2U (88.9 mm)
                     – Depth: 250 mm
                     – Method mounting (length): 19 ” profile

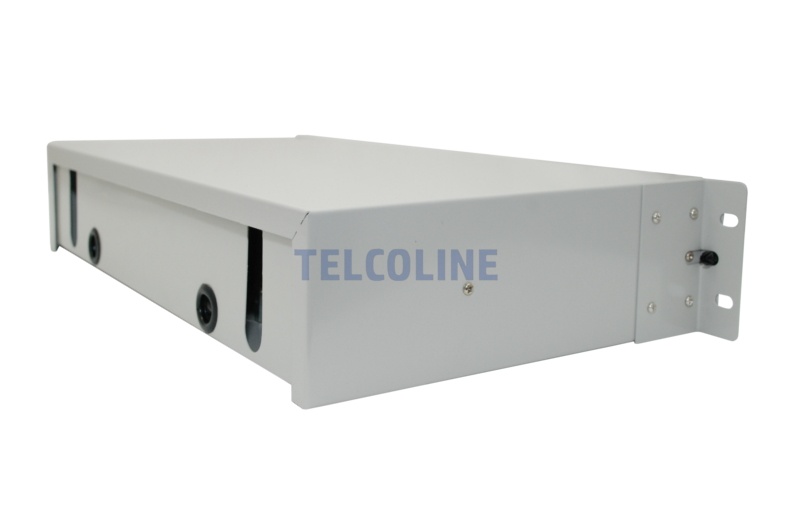

– Diameter of holes on the back: 20 mm

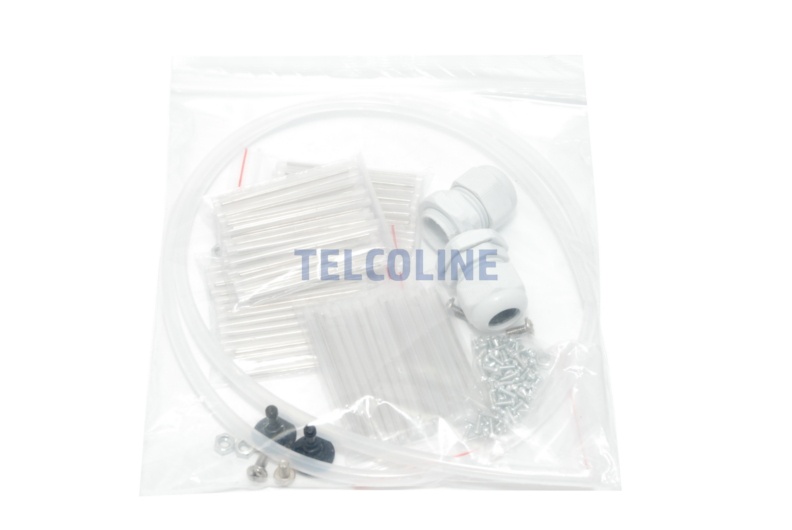

Supplied with:
– Two fiber optic trays
– Cable glands: 2 x PG.13.5
– Splice covers : 96
– Mounting screws for adapters: 96
– Plastic cable ties : 4

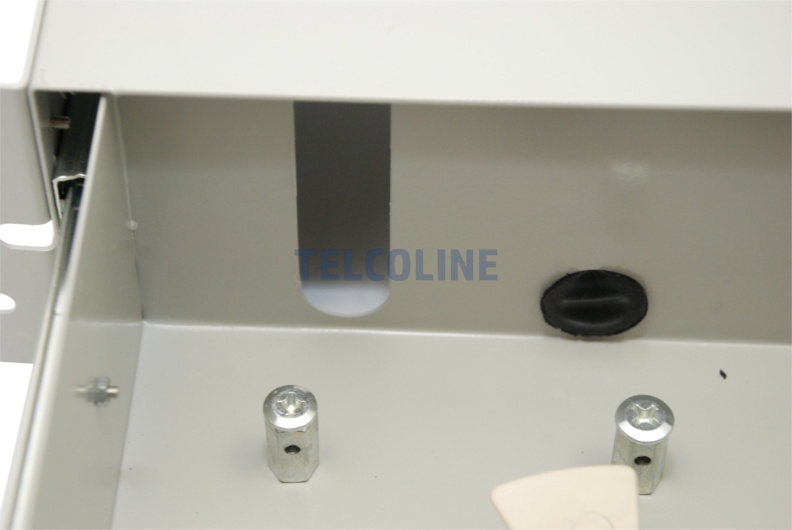

– Elements (bolts) blocking the extension: 2
