Description

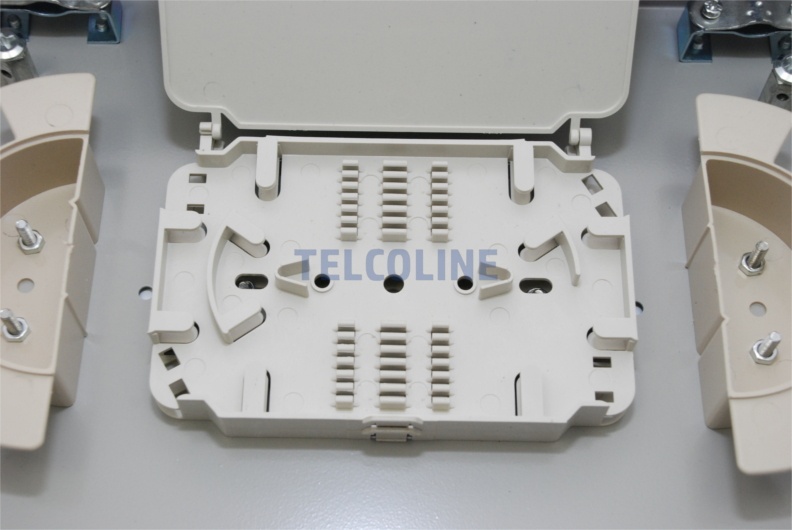

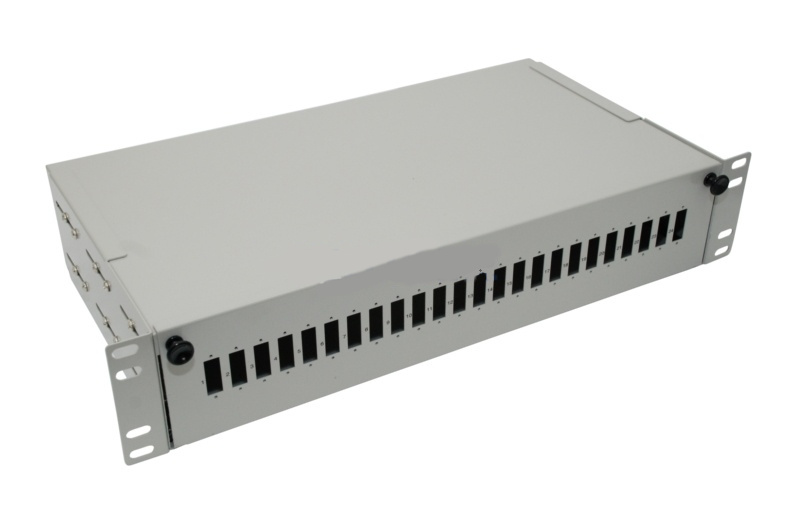

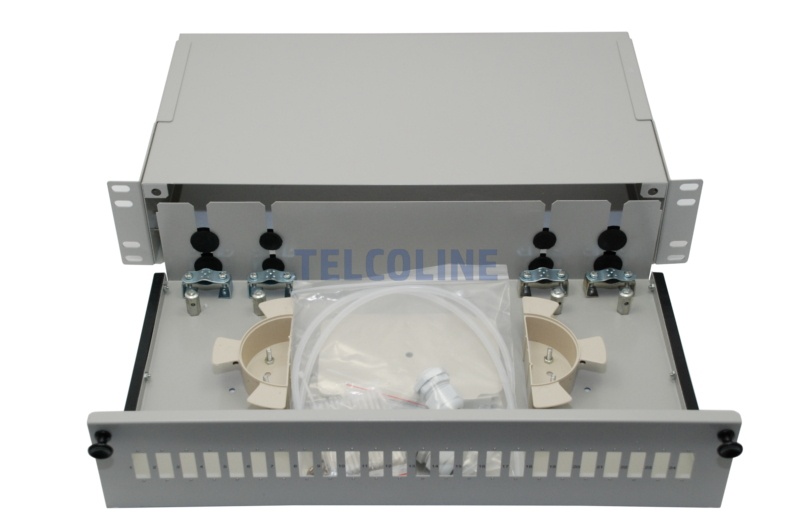

The TELCOLINE 48F – 19 “/ 2U fiber optic distribution box is designed for mounting in 19 – inch data communication cabinets (standing, hanging), it allows to install 24 SC duplex adapters, equipped with a cable organizer and two fiber optic trays, with 8 blind holes on the back It is equipped with a removable and removable drawer allowing free access to the interior.The switch is universal and will be used in server rooms and telecommunications equipment

Technical data:
– Weight: 3 kg
– Number of trays: 2
– Trays capacity: 12/24 welds

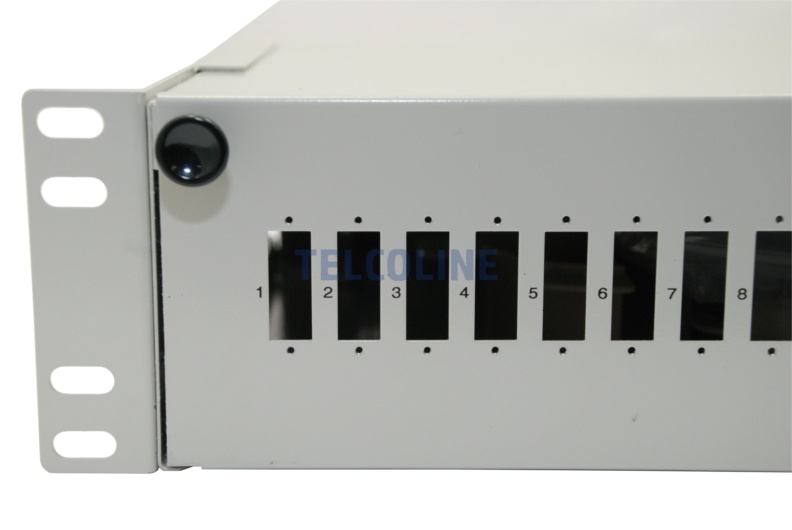

– Maximum number of adapters: 24 (SC Duplex)
– Material: Cold-rolled steel – powder painted in light gray
– Maximum number of trays: 6
– Dimensions: – Mounting height: 2U (88.9 mm)
– Depth: 250 mm
– Mounting method ( length): profile 19 ”

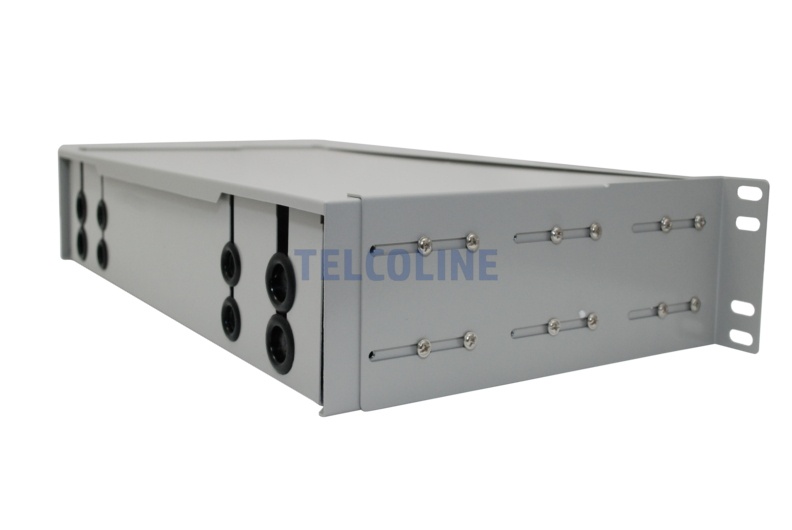

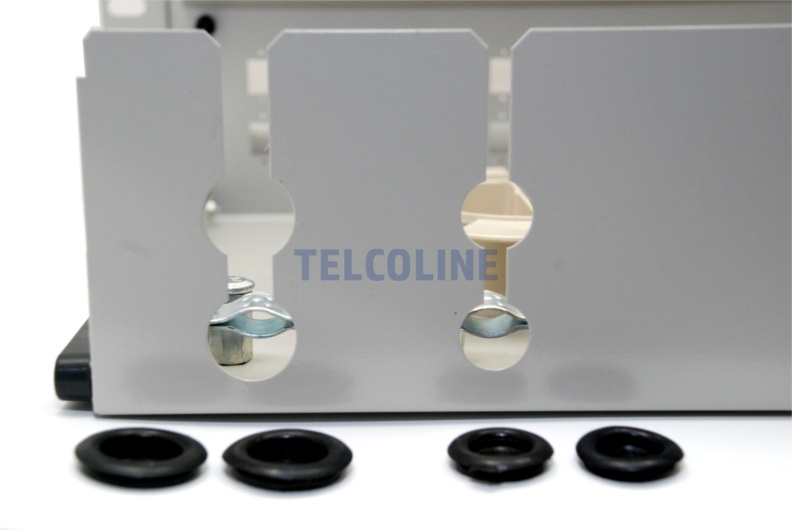

– Diameter of openings on back plate: 4×20 mm, 4×16 mm

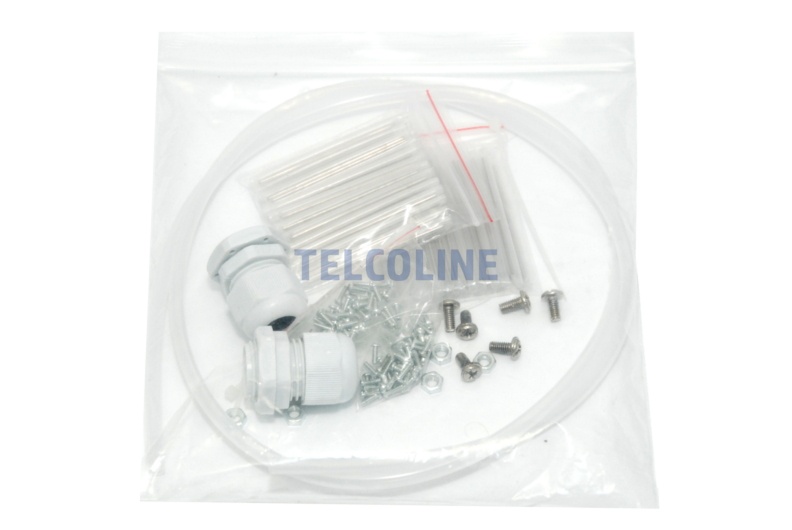

Supplied with:

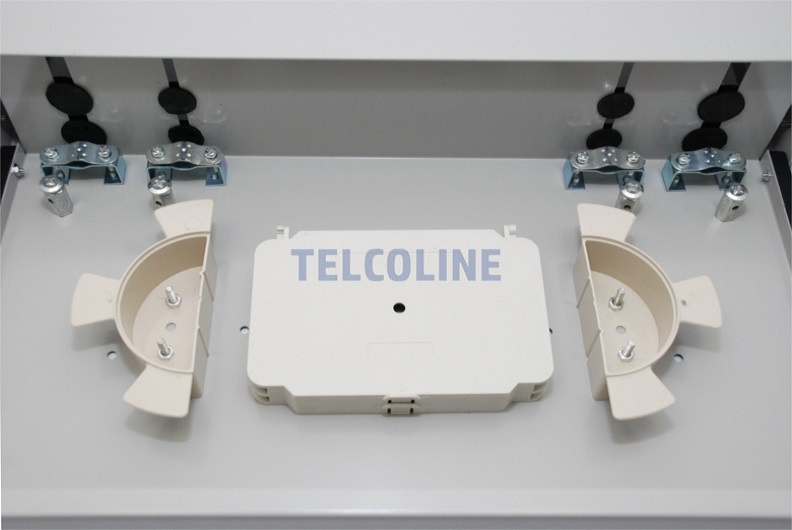

– Two fiber optic trays

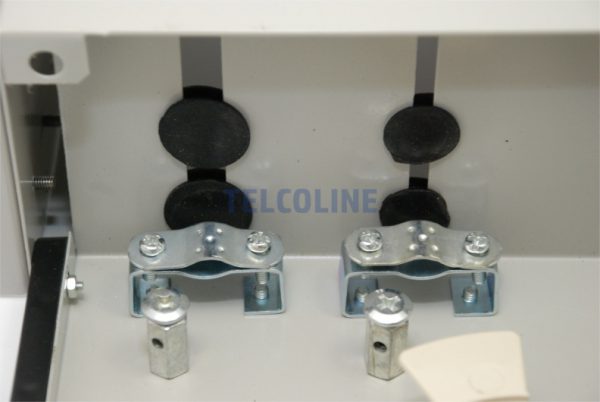

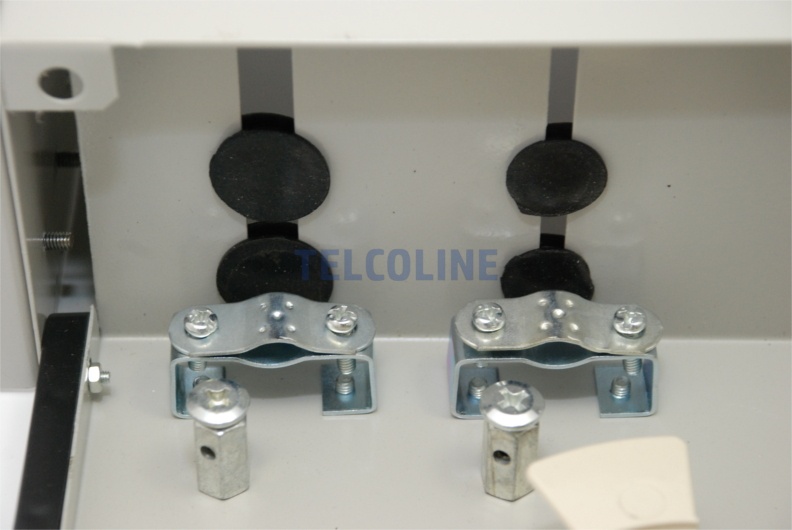

– Cable glands: 2 x PG.13.5
– Protective tube –  Splice covers
: 48
– Mounting screws for adapters: 48
– Plastic clamps: 4
– Elements (pins) blocking the drawer’s extension: 2
