Description

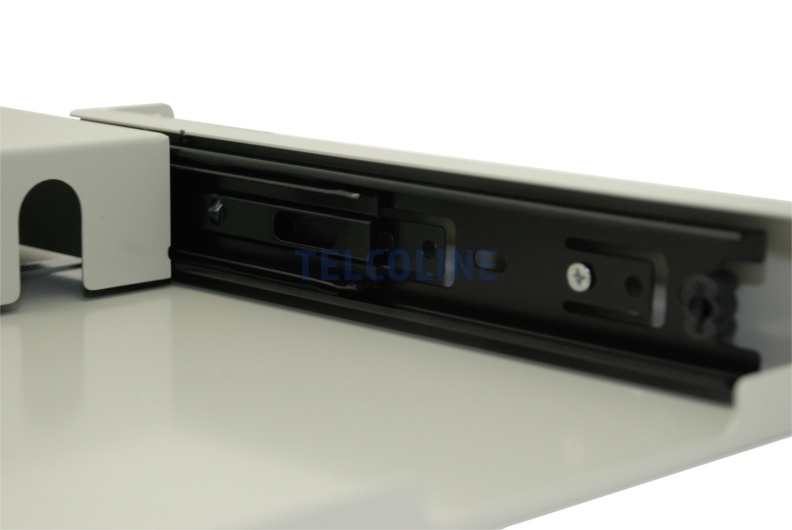

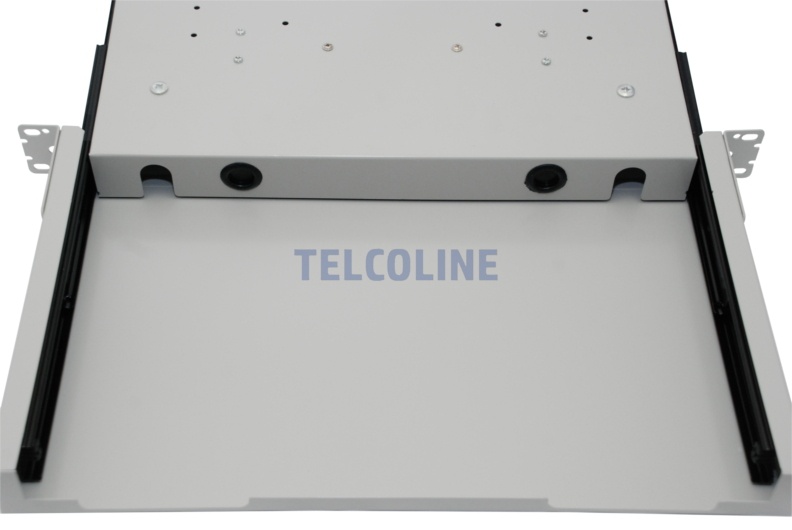

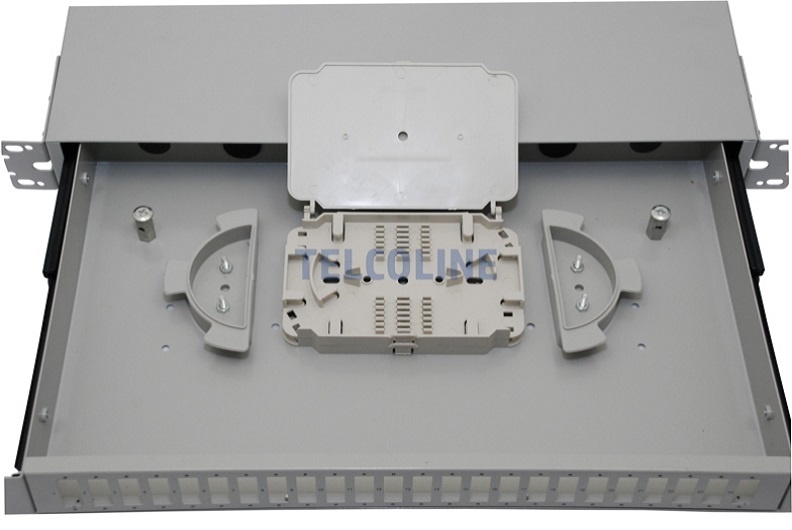

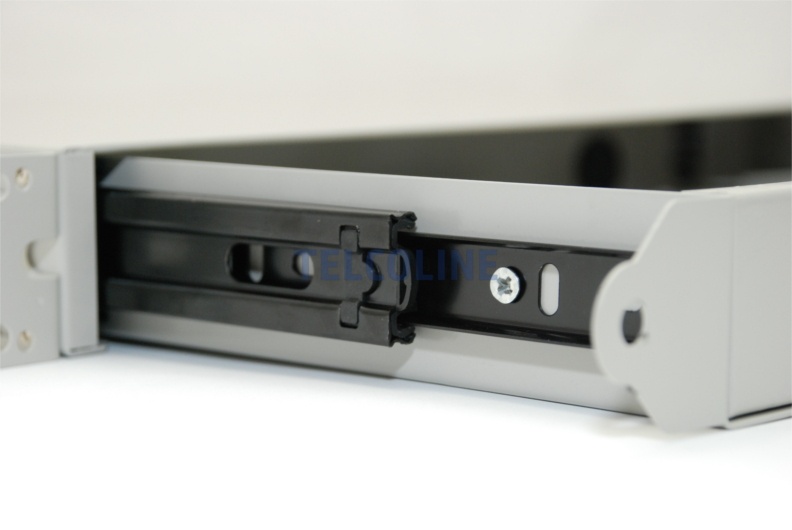

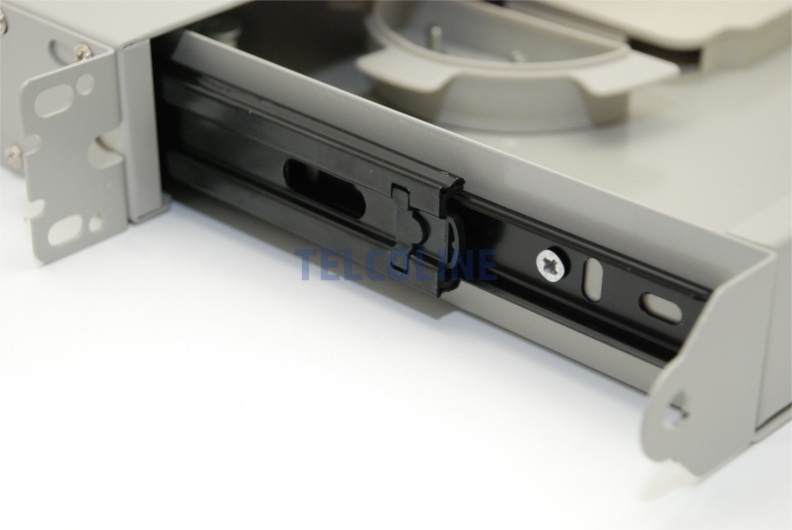

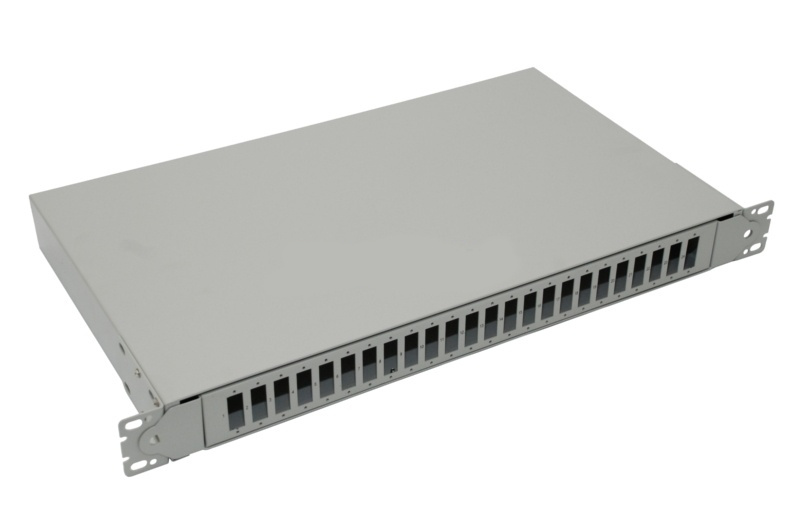

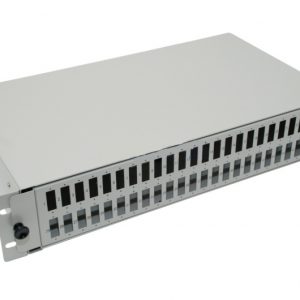

Telcoline 48F – 19 “/ 1U fiber optic distribution box is designed for mounting in 19 – inch data communication cabinets (standing, hanging), it allows to install 24 SC Duplex adapters, equipped with a cable organizer and a fiber optic tray, on the back there are 4 holes for Introduction and delivery of fiber optic cables The switchboard is equipped with a solid rail system allowing the drawer to be pulled out, allowing free access to the interior.The switch is universal and will be used in telecommunications equipment and server rooms

Technical data:
– Weight: 2 kg
– Number of trays: 2
– Tray capacity: 12/24 welds
– Max. Number of welds: 48

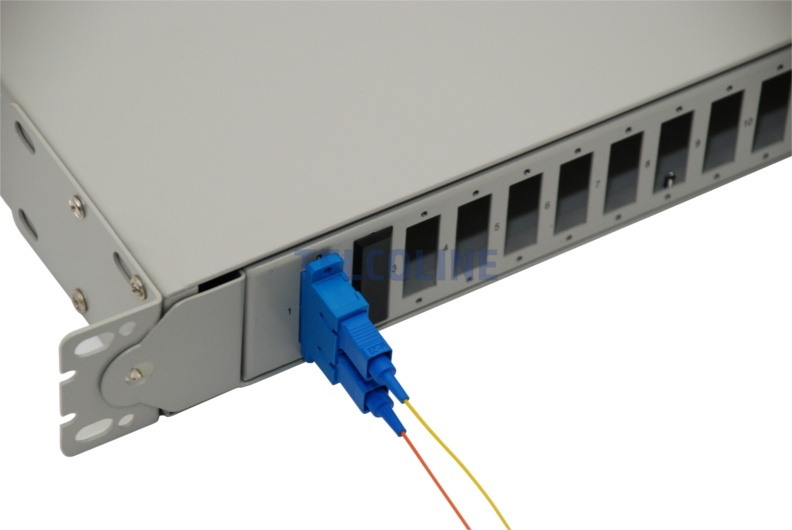

– Maximum number of adapters: 24 (SC Duplex)
– Material: Cold-rolled steel – powder painted in light gray
– Maximum number of trays: 3
– Dimensions: – Mounting height: 1U (44.45 mm)
                     – Depth: 250 mm
                     – Method mounting (length): 19 ” profile

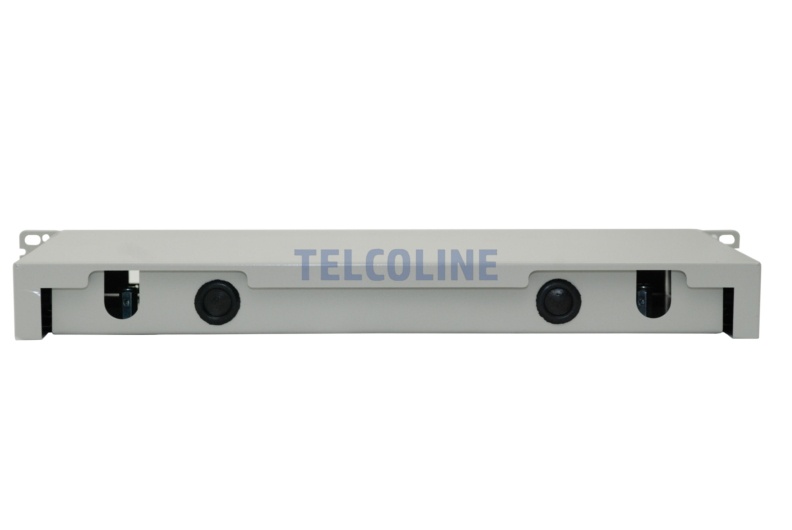

– Diameter of holes on the back: 20 mm

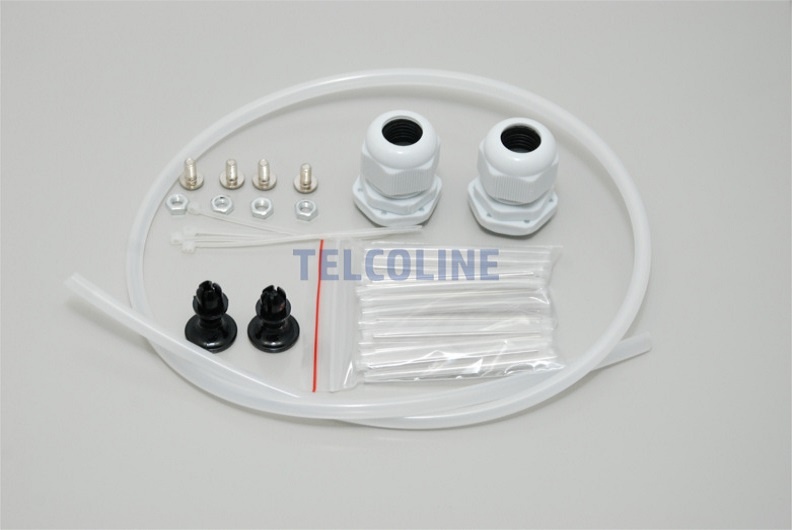

Supplied with:

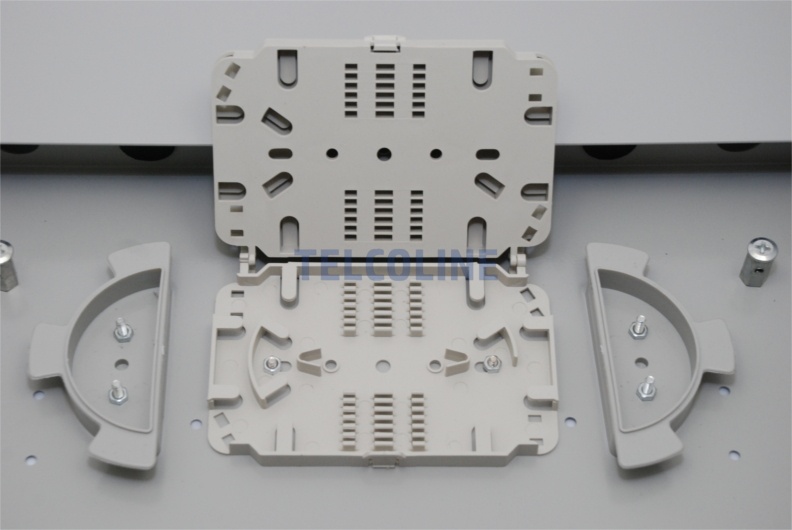

– Optical trays: 2
– Cable glands: 2 x PG.13.5
– Splice covers : 48
– Mounting screws for adapters: 48
– Plastic bands clamps: 4
– Elements (bolts) blocking the extension: 2
