Description

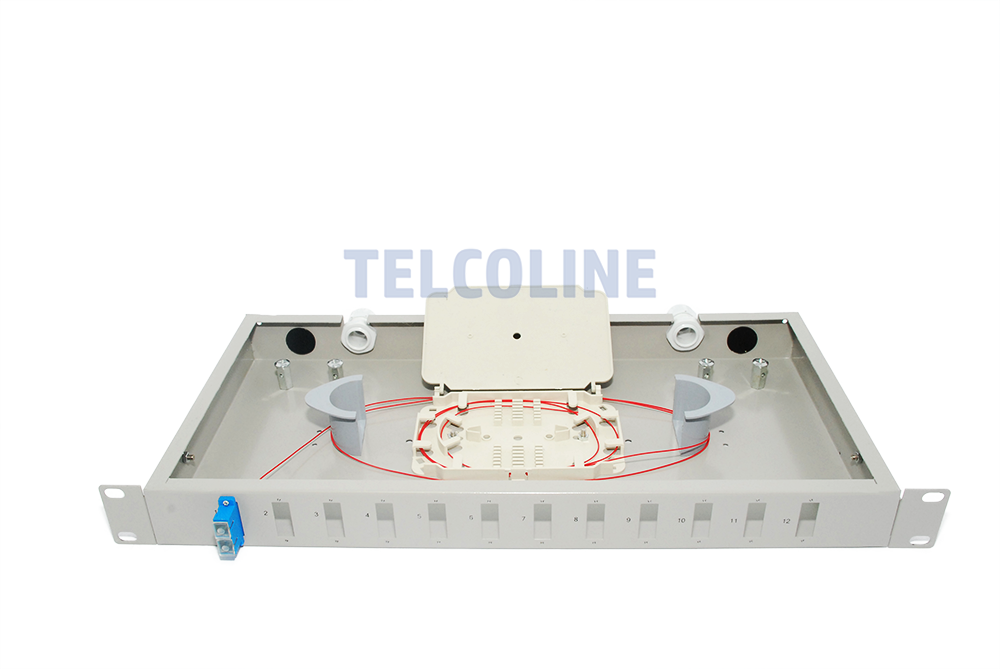

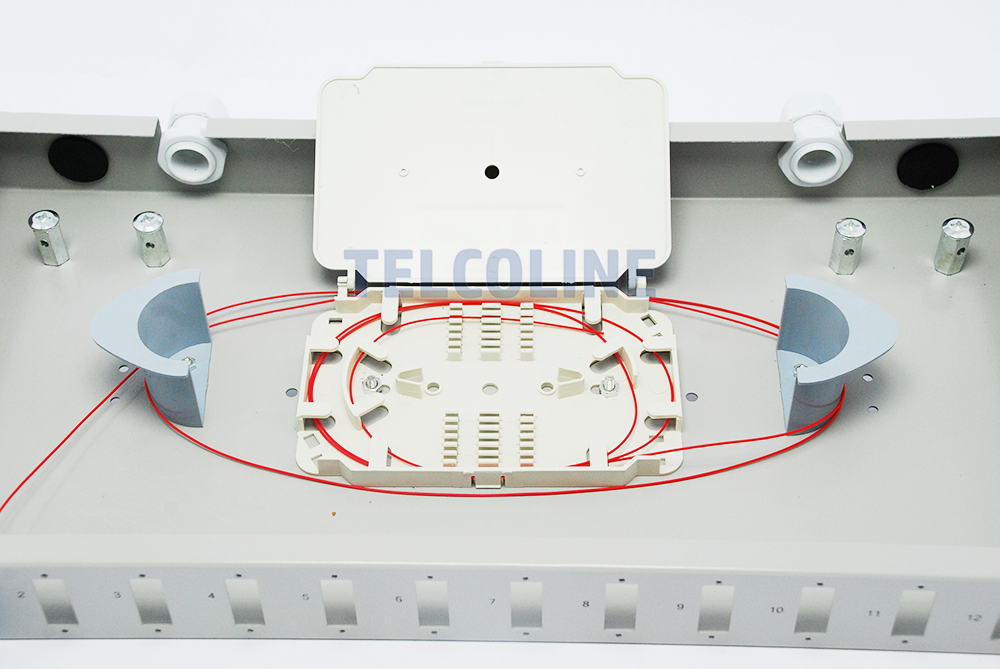

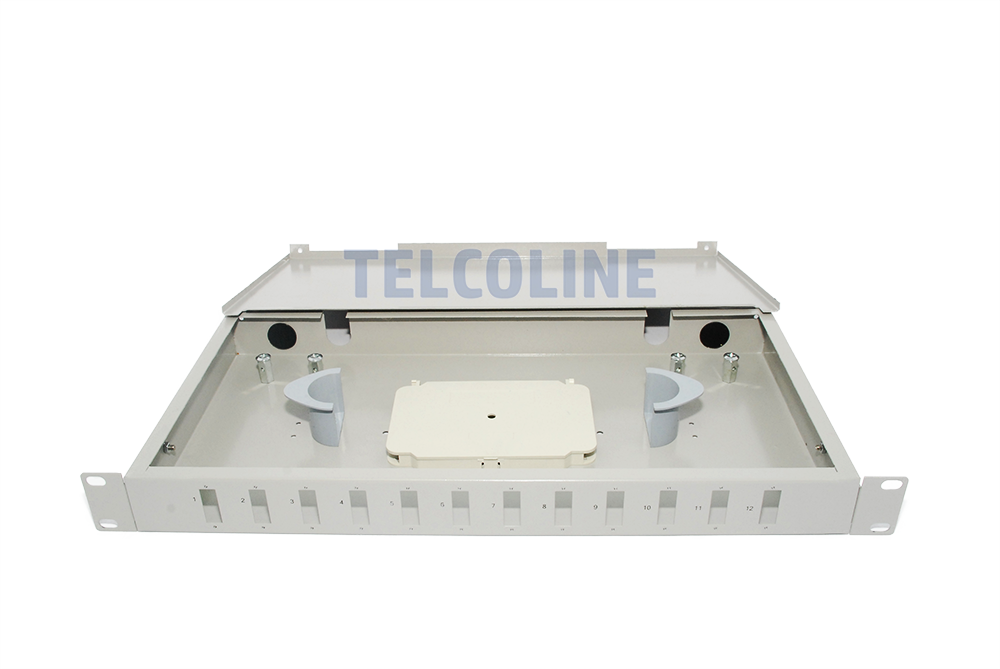

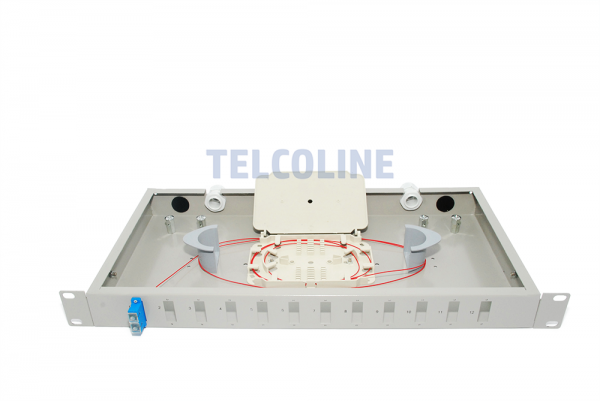

1U / 19 “24F / 12SC Duplex, the rack mounted switchboard is designed for mounting in 19-inch data communication cabinets (standing, hanging), the switch allows to install 12 SC Duplex adapters, equipped with a cable organizer and a fiber-optic tray. 2 openings fused with rubber gaskets and 2 holes for PG13.5 cable glands (with height adjustment), intended for the introduction and output of fiber optic cables The switch is universal and will be used in telecommunications equipment and server rooms

Application:
• Server rooms
• Fiber optic distributions

Technical Data:
• Weight: 2 kg
• Number of trays: 1
• Tray capacity: 12/24 welds
• Maximum number of adapters: 12 (SC Duplex)
• Maximum number of trays: 3
• Material: Cold-rolled steel – powder painted in  light gray
• Dimensions: Installation height: 1U (44.45 mm), Depth: 250 mm, Mounting method (length): profile 19 ”

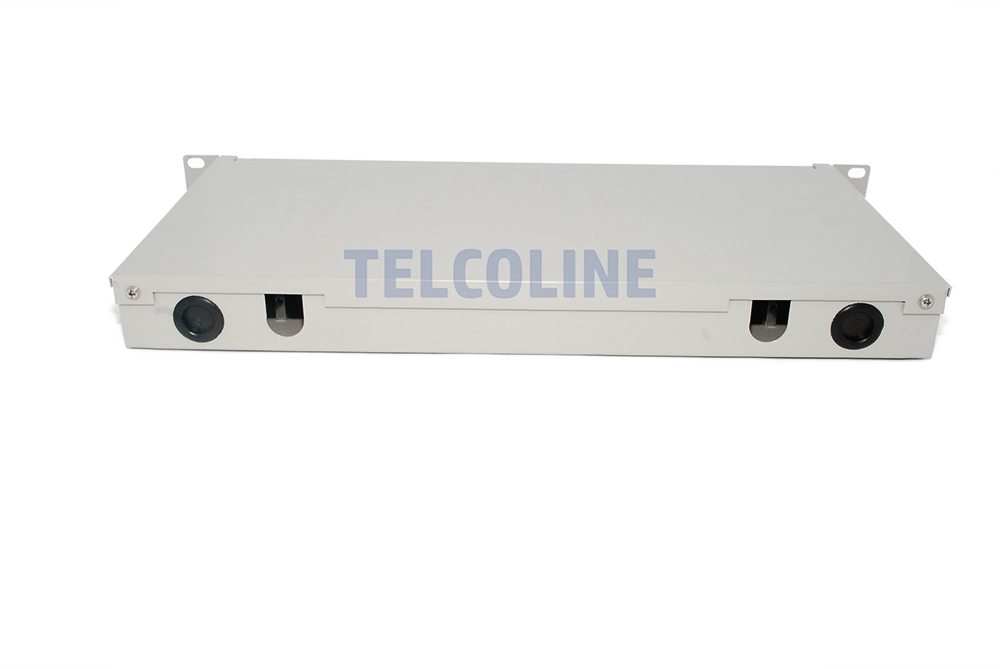

• Diameter of holes on the back: Rubber 2×20 mm, for Cable gland: 2 x PG.13.5

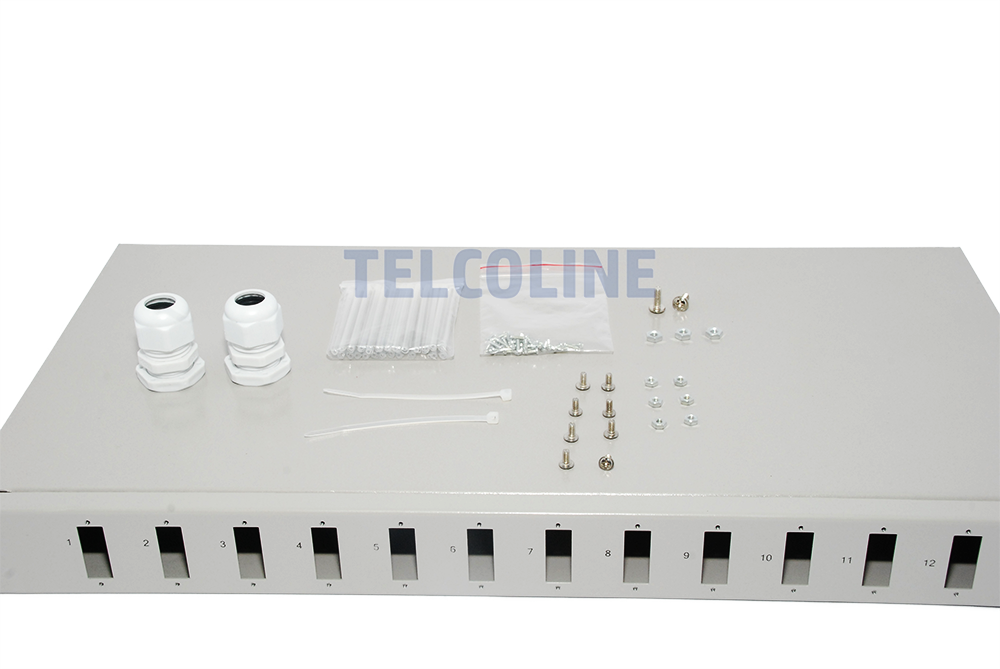

Kit components:
• One fiber optic tray
• Cable gland: 2 x PG.13.5
• Mounting screws for adapters: 38 pcs
• Plastic clamps: 2 pcs
• Spare screws: 8pcs (small) and 2pcs (large)
• Spare nuts: 6pcs (small) and 3pcs (large)
• Splice covers: 1pack / 24pcs
