Description

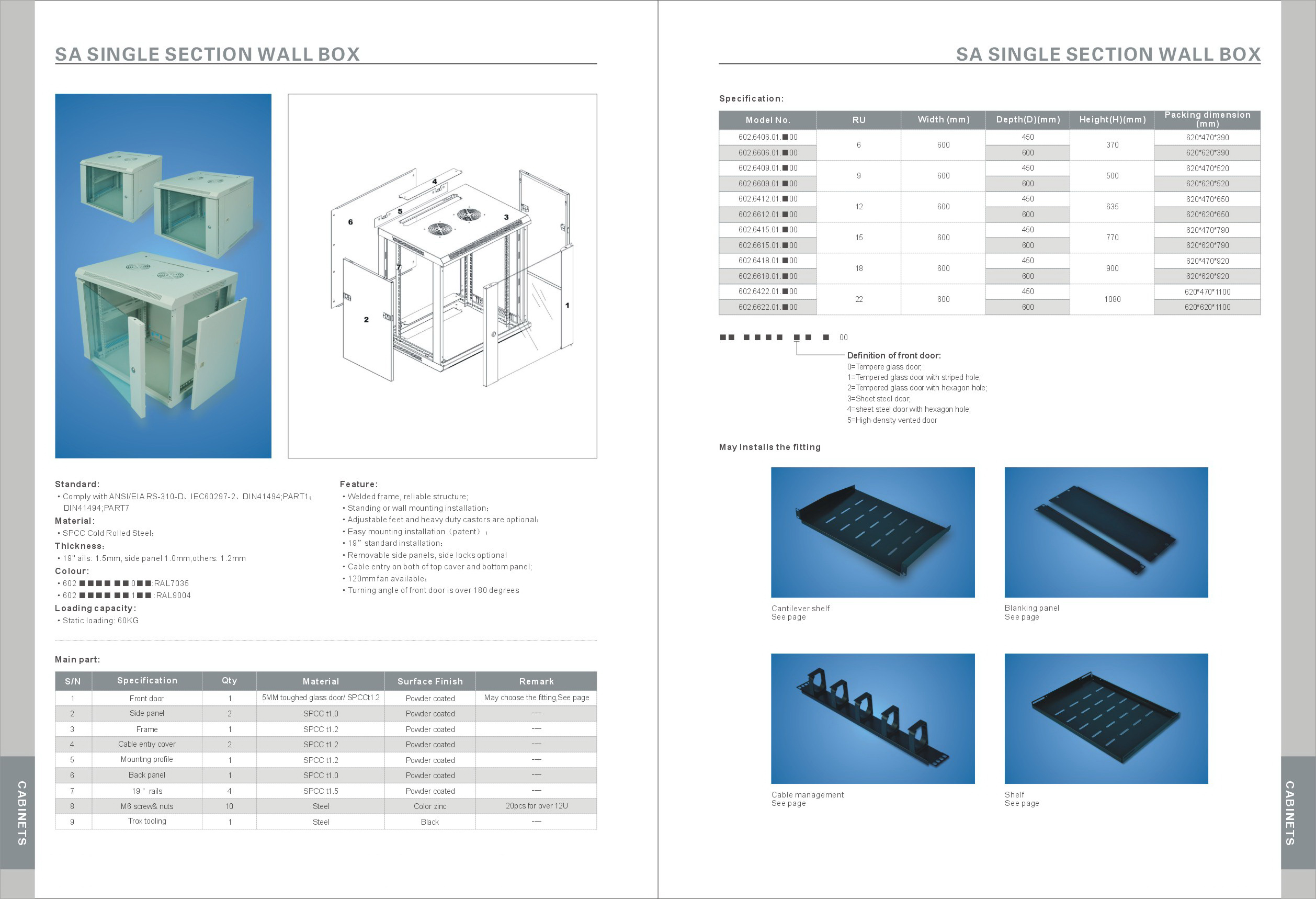

NaviaTec SA Series
Feature:
• Welded Frame, reliable structure
• Standing or wall mounting installation
• Easy mounting installation
• 19″ standard installation
• Removeable Side Panels
• Cable entry on both top cover and bottom panel
• 120mm fan available: must be purchase seperate
• Turning angle of front door is over 180 degrees
• Usable Interior Depth 515mm
Standard:
Comply with ANSI/EIA RS-310-D, IEC60297-2, DIN41494-Part1, DIN41494, Part7
Material:
SPCC Cold Rolled Steel
Thickness: 19″ rails: 1.5mm
side panel 1.0mm, others: 1.2mm
Color
Beige
Loading Capacity:
Static loading: 60KG
Specification:
Heights Available: 6U, 9U, 12U, 15U, 18U, 22U, 27U
Main Parts:
| S/N | Specification | Qty | Material | Surface finish | Remark |
| 1 | Front door | 1 | 5MM toughed glass door/ SPCCt1.2 |
Powder coated | Small lock |
| 2 | Side panel | 2 | SPCC t1.0 | Powder coated | – |
| 3 | Frame | 1 | SPCC t1.2 | Powder coated | – |
| 4 | Cable entry cover | 2 | SPCCt1.2 | Powder coated | – |
| 5 | Mounting profile | 1 | SPCC t1.2 | Powder coated | – |
| 6 | Back panel | 1 | SPCC t1.0 | Powder coated | – |
| 7 | 19″ rails | 4 | SPCC t1.5 | Powder coated | – |
| 8 | M6 screws and nuts | 10 | Steel | 20pcs for over 12U | |
| 9 | Trox tooling | 1 | Steel | – |
Ordering Info:
| Model No. | U | Width | Depth | Height | Packing dimension | EAN Code | Usable Interior Depth |
| NVT-WCAB6U-S6060G | 6U | 600 | 600 | 370 | 620*620*390 20 kg |
3856016515772 | 515mm |
| NVT-WCAB9U-S6060G | 9U | 600 | 600 | 500 | 620*620*520 23 kg |
3856016515789 | 515mm |
| NVT-WCAB12U-S6060G | 12U | 600 | 600 | 635 | 620*620*655 | 3856016515796 | 515mm |
| NVT-WCAB15U-S6060G | 15U | 600 | 600 | 770 | 620*620*790 | 3856016515802 | 515mm |
| NVT-WCAB18U-S6060G | 18U | 600 | 600 | 900 | 620*620*920 | 3856016515819 | 515mm |
| NVT-WCAB22U-S6060G | 22U | 600 | 600 | 1080 | 620*620*1100 39 kg |
3856016515826 | 515mm |
| NVT-WCAB27U-S6060G | 27U | 600 | 600 | 1304 | 620*620*1324 | 385601651 | 515mm |
Optional Accessories Sold Seperate:
| Model No. | Description |
| NVT-SH-4845G | Fixed Shelf 485 x 450 for 600mm deep wall cabinet |
| NVT-SH-CL4825G-1U | Cantilever Shelf 250mm deep 1U Capacity 10kg |
| NVT-SH-CL4830G-2U | Cantilever Shelf 300mm deep 2U Capacity 22kg |
| NVT-SH-CL4835G-2U | Cantilever Shelf 355mm deep 2U Capacity 22kg |
| NVT-SH-CL4840G-2U | Cantilever Shelf 400mm deep 2U Capacity 22kg |
| NVT-SH-CL4840G-3U | Cantilever Shelf 400mm deep 3U Capacity 36,3kg |
| NVT-SH-CL4845G-2U | Cantilever Shelf 457mm deep 2U Capacity 22kg |
| NVT-SH-CL4845G-3U | Cantilever Shelf 457mm deep 3U Capacity 36,3kg |
| NVT-PDU001 | 19″ 1U 6-outlet power distribution unit (6x schuko) |
| NVT-PDU003 | 19″ 1U 7-outlet power distribution unit (4x schuko, 2x IEC C13) |
| NVT-PDU006 | 19″ 2U 15-outlet power distribution unit (15x schuko) |
| NVT-PDU008 | 19″ 1U 8-outlet power distribution unit (8x schuko) |
| NVT-PDU009 | 19″ 1U 8-outlet power distribution unit (6x schuko, 2x IEC C13) |
| NVT-PDU010 | 19″ 1U 8-outlet power distribution unit with IEC320 C14 input connector(8x schuko) |
| NVT-PDU011 | 19″ 1U 8-outlet power distribution unit with IEC320 C14 input connector(6x schuko, 2x IEC C13) |
| NVT-CABMNGT-1U5B | 1U plastic cable management with 5 rings |
| NVT-CABMNGT-1UB | 1U metal cable management with cover |
| NVT-CABMNGT-1UBB | 1U cable management with brush |
| NVT-FAN-1X | One cooling fan with 2m power cable |
| NVT-FAN-2X | Two cooling fans with 2m power cable |
| NVT-FAN-1U2X | 1U 2-fans unit |
| NVT-FAN-2X+TCU | 1U 2-fan with thermal control digital temp unit |
| NVT-FAN3U2X | 3U 2-fans unit |
| NVT-BKT-66B | L-Bracket for 600mm deep cabinet |
| NVT-M6-549 | M6 screw + caged nut |
| NVT-PN1U-484B | 1U blanking panel for 19″ cabinet |
| NVT-PN2U-488B | 2U blanking panel for 19″ cabinet |
| NVT-PNL3U-481B | 3U blanking panel for 19″ cabinet |
| NVT-PNL4U-481B | 4U blanking panel for 19″ cabinet |
| NVT-CAT6-UPP331 | Cat6 24-port unshielded patch panel for 19″ wide cabinet |
| NVT-CAT6-SPP275 | Cat6 24-port shielded patch panel for 19″ wide cabinet |
| NVT-CAT6-SPP330 | Cat6 16-port shielded patch panel for 19″ wide cabinet |
