Description

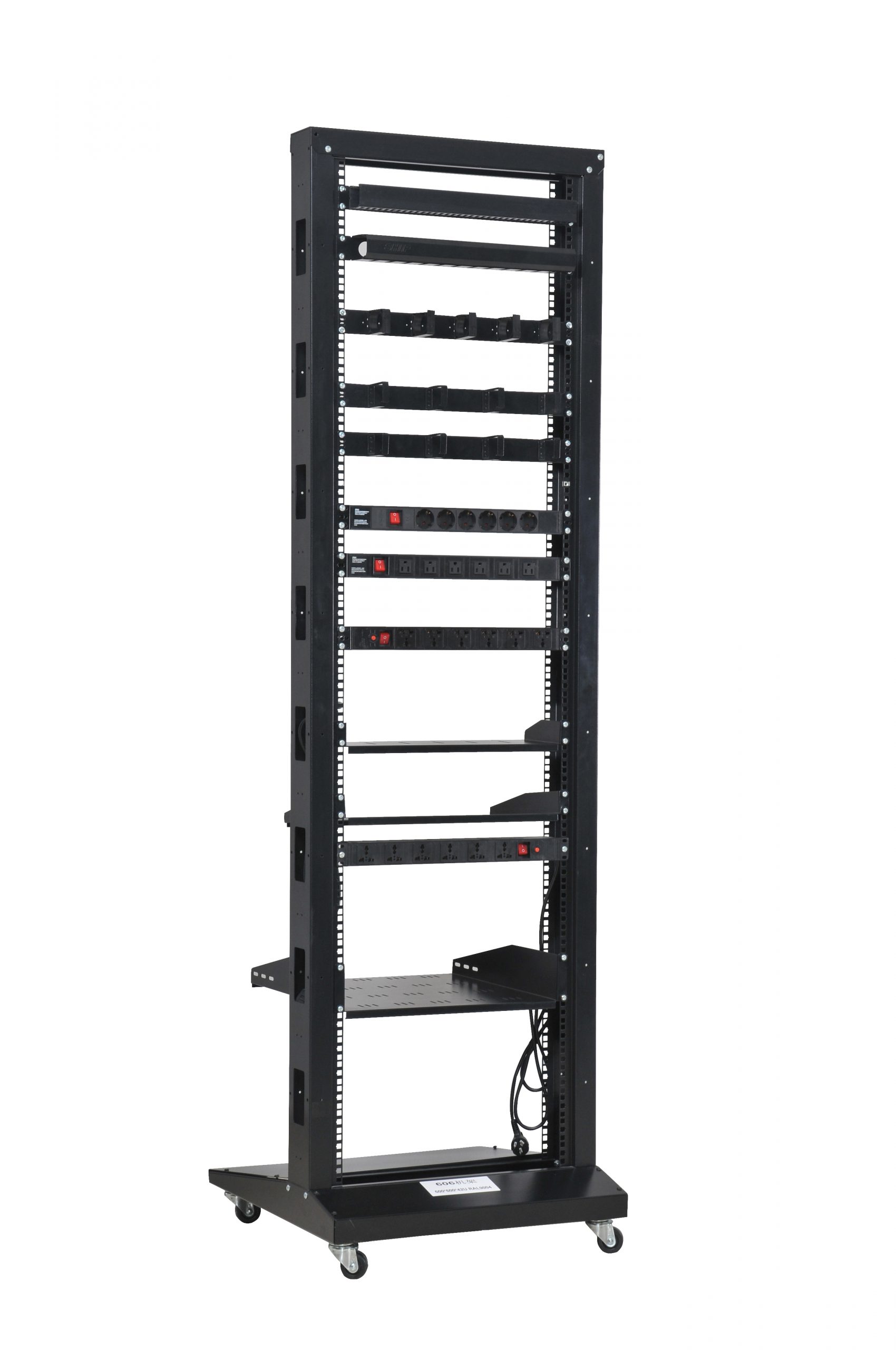

NaviaTec Network 2-Post Open Frame Racks Black
Feature:
• Modular design, easily assembled and disassembled for delivery.
• Various optional accessories available
• 19″ standard installation
Standard:
Complies with ANSI/EIA RS-310-D, IEC60297-2, DIN41494-Part1, DIN41494, Part7
Material:
SPCC Cold Rolled Steel
Column: 1.5mm, others: 2.0mm
Color
Black
Loading Capacity:
Static loading: 150KG
Specification:
Heights Available: 29U, 33U, 38U, 42U, 47U

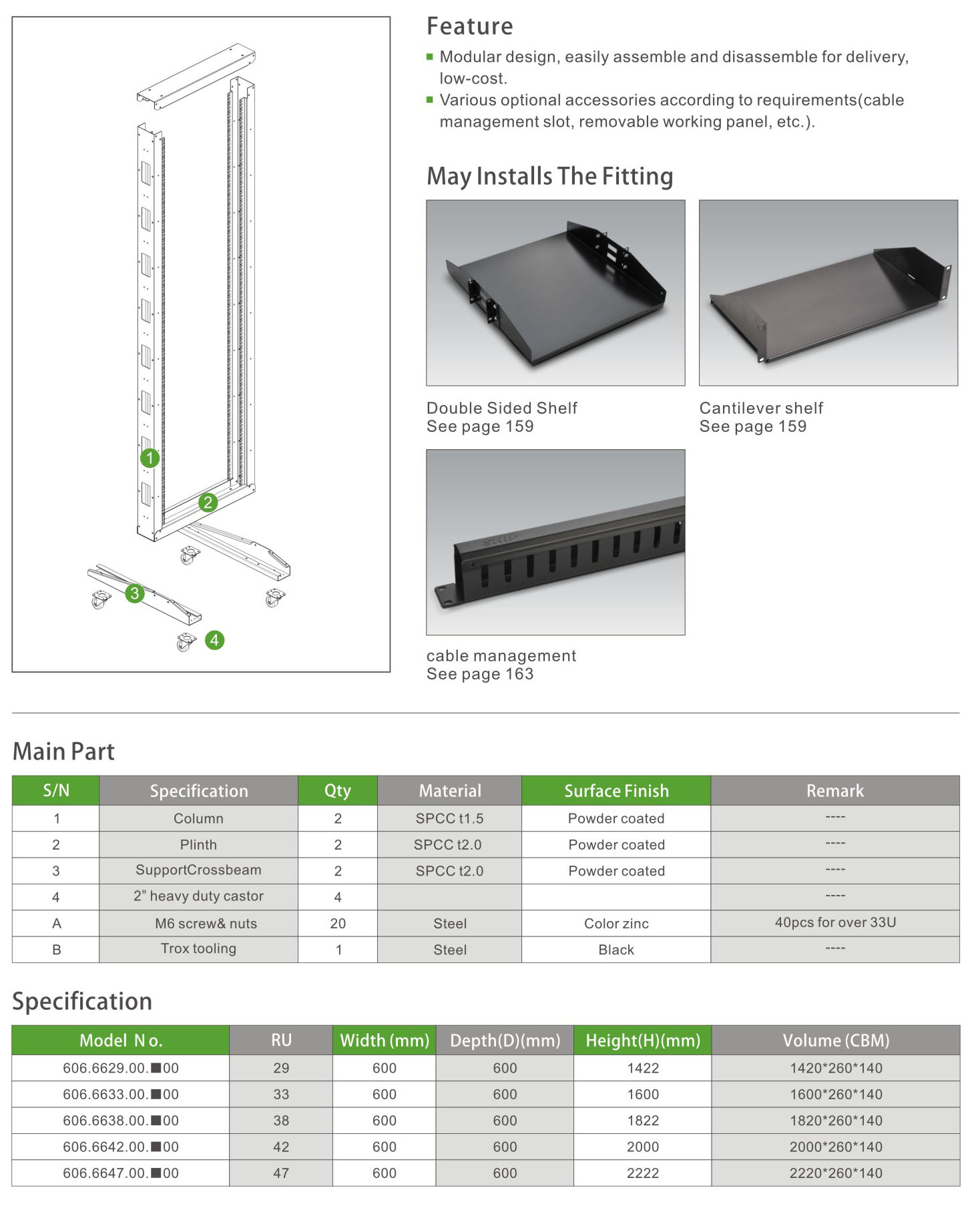

Main Parts:
| S/N | Specification | Qty | Material | Surface finish | Remark |
| 1 | Column | 2 | SPCC t1.5 | Powder coated | – |
| 2 | Plinth | 2 | SPCC t2.0 | Powder coated | – |
| 3 | Support Crossbeam | 2 | SPCC t2.0 | Powder coated | – |
| 4 | 2″ heavy duty castor | 4 | – | ||
| A | M6 screws & nuts | 20 | Steel | Color Zinc | 40pcs for over 33U |
| B | Trox tooling | 1 | Steel | Black | – |
Ordering Info:
| Model No. | RU | Width | Depth | Height | Packing dimension |
| NVT-ORACK29U-606 | 29U | 600 | 600 | 1422 | 1420*260*140 |
| NVT-ORACK33U-606 | 33U | 600 | 600 | 1600 | 1600*260*140 |
| NVT-ORACK38U-606 | 38U | 600 | 600 | 1822 | 1820*260*140 |
| NVT-ORACK42U-606 | 42U | 600 | 600 | 2000 | 2000*260*140 |
| NVT-ORACK47U-606 | 47U | 600 | 600 | 2222 | 2220*260*140 |
Optional Accessories:
| Model No. | Description |
| NVT-SH-DS2U | 19″ double side shelf for open frame racks |
| NVT-PDU001 | 19″ 1U 6-outlet power distribution unit (6x schuko) |
| NVT-PDU003 | 19″ 1U 7-outlet power distribution unit (4x schuko, 2x IEC C13) |
| NVT-PDU006 | 19″ 2U 15-outlet power distribution unit (15x schuko) |
| NVT-PDU008 | 19″ 1U 8-outlet power distribution unit (8x schuko) |
| NVT-PDU009 | 19″ 1U 8-outlet power distribution unit (6x schuko, 2x IEC C13) |
| NVT-PDU010 | 19″ 1U 8-outlet power distribution unit with IEC320 C14 input connector(8x schuko) |
| NVT-PDU011 | 19″ 1U 8-outlet power distribution unit with IEC320 C14 input connector(6x schuko, 2x IEC C13) |
| NVT-M6-549 | M6 Screw + caged nut |
| NVT-CAT6-UPP331 | Cat6 24-port unshielded patch panel for 19″ wide cabinet |
| NVT-CAT6-SPP275 | Cat6 24-port shielded patch panel for 19″ wide cabinet |
| NVT-CAT6-SPP330 | Cat6 16-port shielded patch panel for 19″ wide cabinet |
| NVT-PNL1U-373B | Cat6 24-port Blank patch panel for 19″ wide cabinet, NVT-JACK-372 sold seperate |
Product documentation
Spec Sheet Click HERE
