NaviaTec 19″ Schuko 1U Power Distribution Unit
Power Distribution Unit designed for 482.6mm (19″) Cabinets
Features:
• PDU includes Master On/Off Switch with protection cover
• Master Surge Overload Protector
• Occupies 1U of rackspace
• Includes L mounting brackets
• Installation is simple: two screws are needed
• Output Cable Length: 1,8m
Rated Working Voltage: 250V/50Hz
Maximum Working Current: 16A
Maximum Working Power: 3500W
Voltage protection level up: <1000V
Response Time TA: <20nS
Insulation resistance RIS: >100M ohms
Fire Resistance: Up to UL 94V-0
Environment Temperature: -40-+70C
Relative Humidity: <=95%
Ordering Info:
| Model No. |
Input Connector |
Output Connectors |
| PDU001 |
Schuko |
6x DIN49440 Schuko 16A 250VAC |
| PDU003 |
Schuko |
2x IEC320 C13 +5x DIN49440 Schuko 16A 250VAC |
| PDU006 |
Schuko |
15x DIN49440 Schuko 16A 250VAC |
| PDU007 |
Schuko |
10″ model 4x DIN49440 Schuko 16A 250VAC |

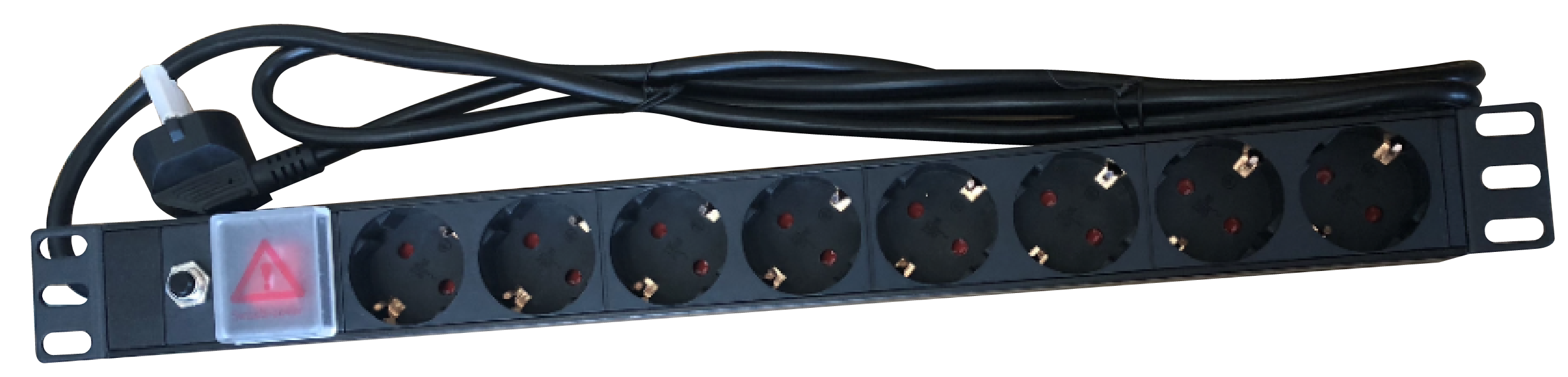

| PDU008 |
Schuko |
8x DIN49440 Schuko 16A 250VAC |
| PDU009 |
Schuko |
2x IEC320 C13+ 6x DIN49440 Schuko 16A 250VAC |

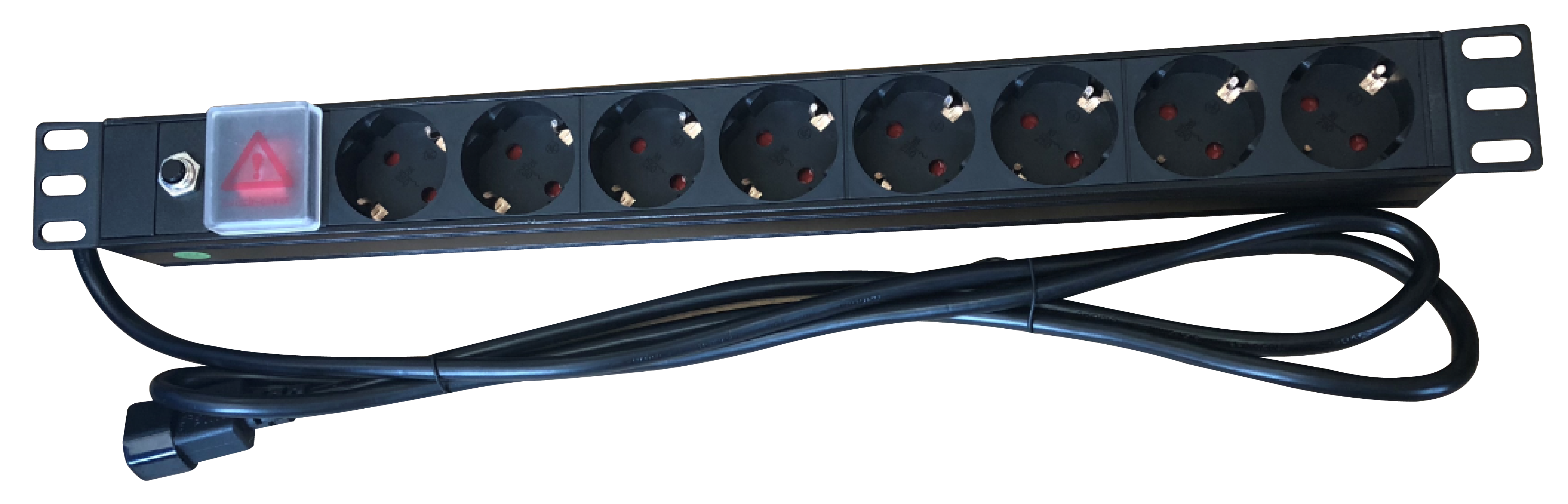

| PDU010 |
IEC320 C14 |
8x DIN49440 Schuko 16A 250VAC |
| PDU011 |
IEC320 C14 |
2x IEC320 C13+ 6x DIN49440 Schuko 16A 250VAC |
